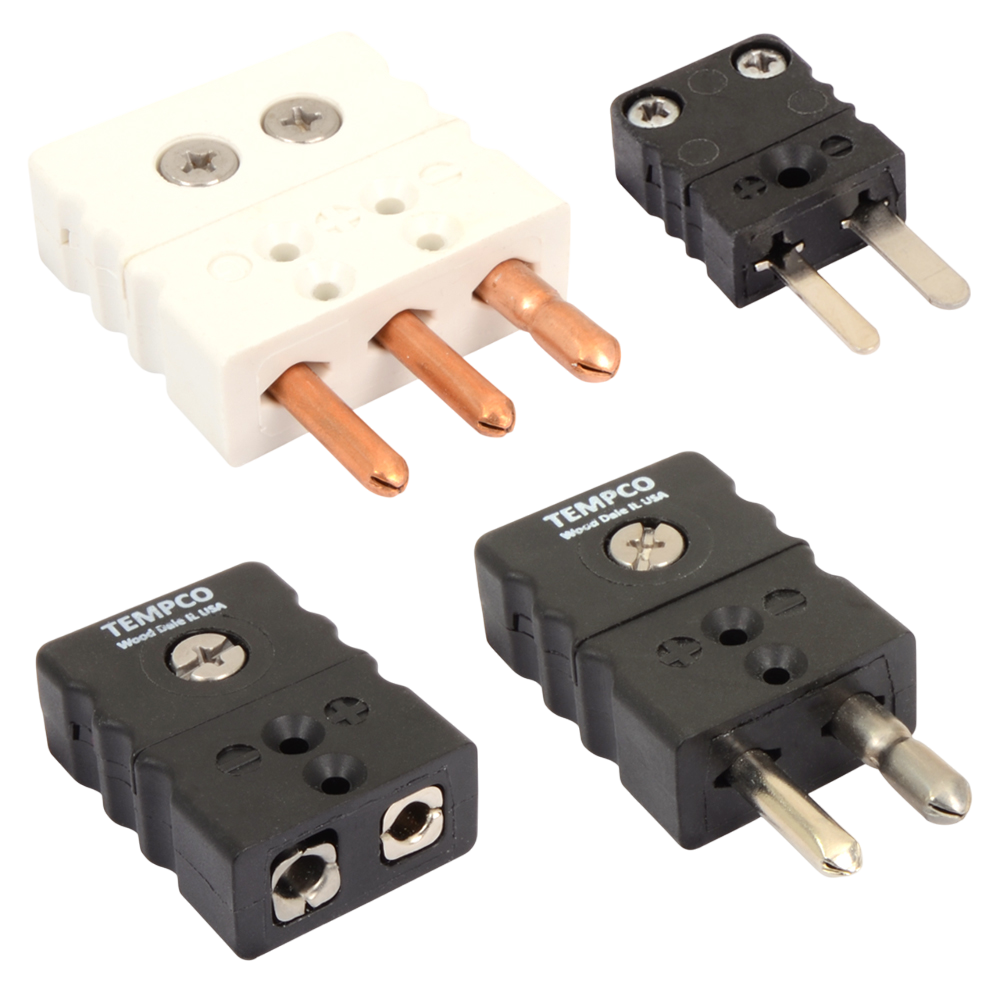

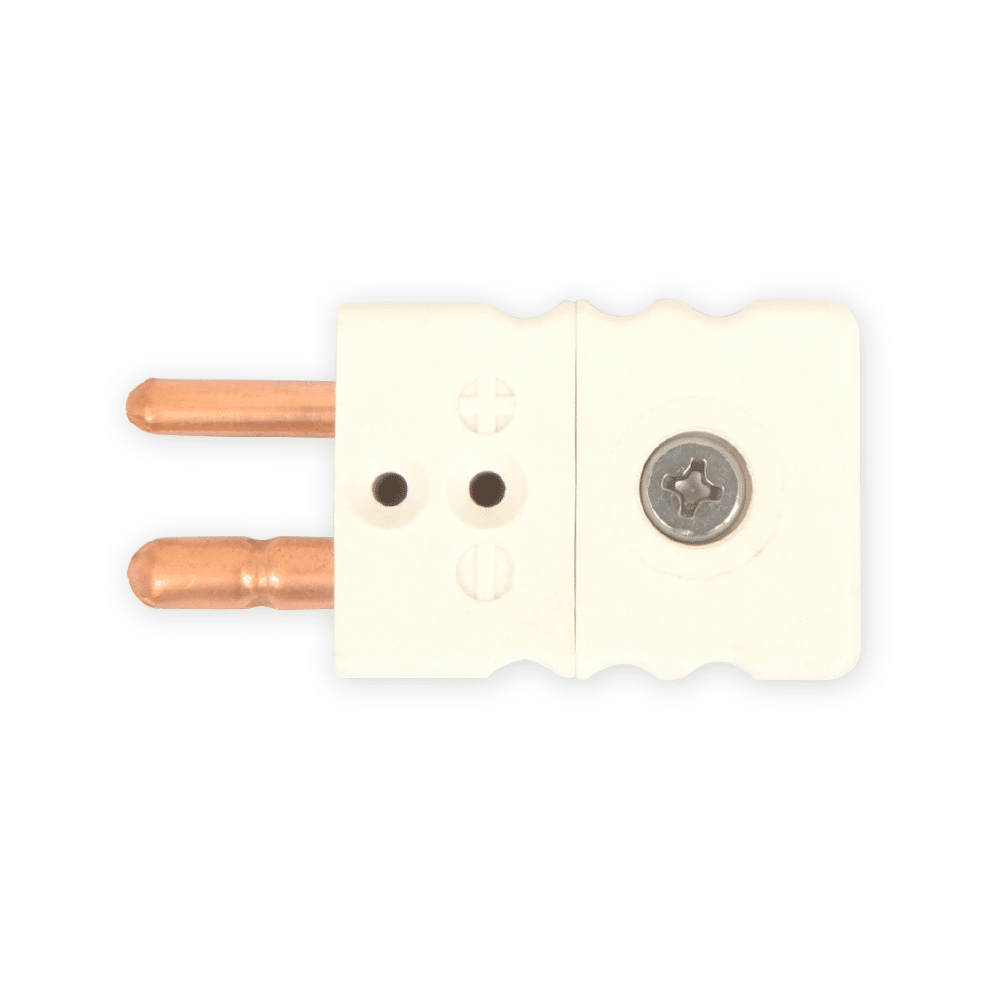

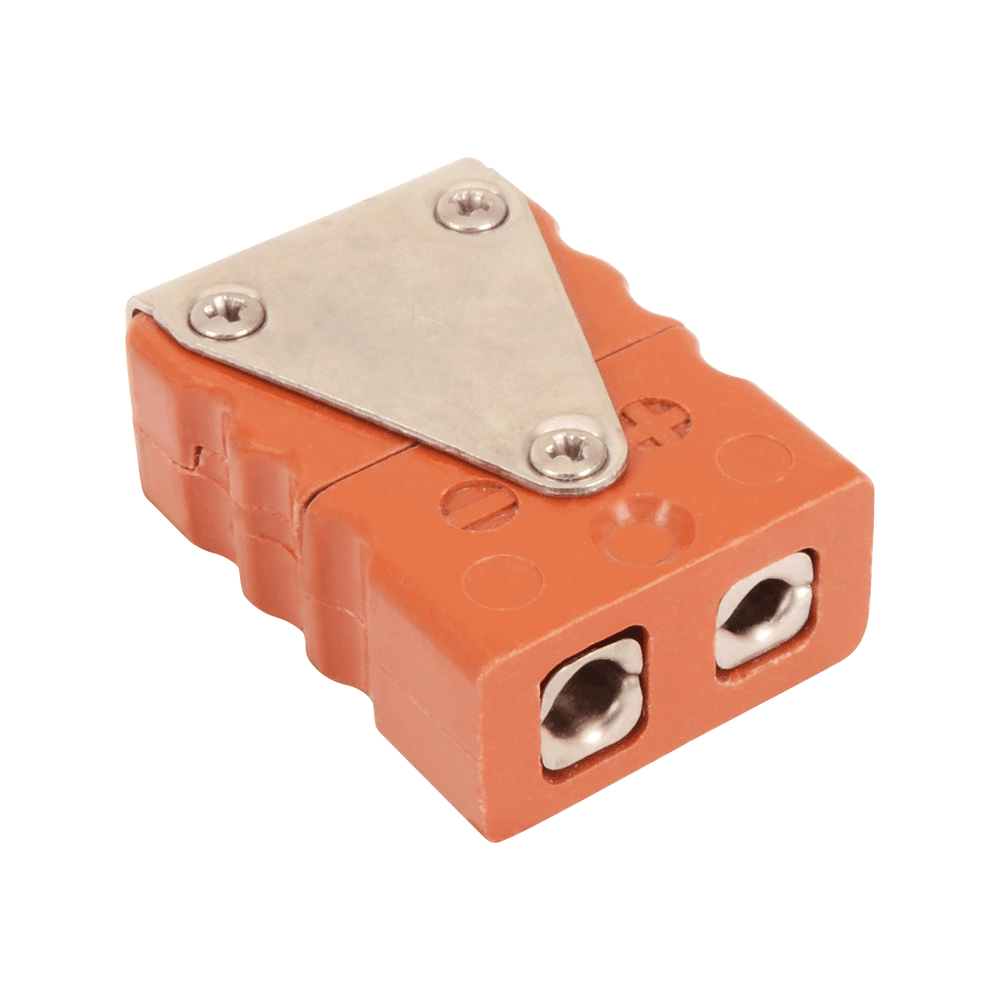

Quick Disconnect Plugs and Jacks

Standard plugs and jacks in 2- and 3-pin configurations, High-Temperature and Ultra-High Temperature in 2-pin configurations, and Miniature plugs and jacks in 2- and 3-pin configurations share these Common Design Features:

• Quick and easy wire connections without the need for making a loop Standard: up to 16AWG Miniature: up to 20AWG
• Standard: up to 16AWG
• Miniature: up to 20AWG

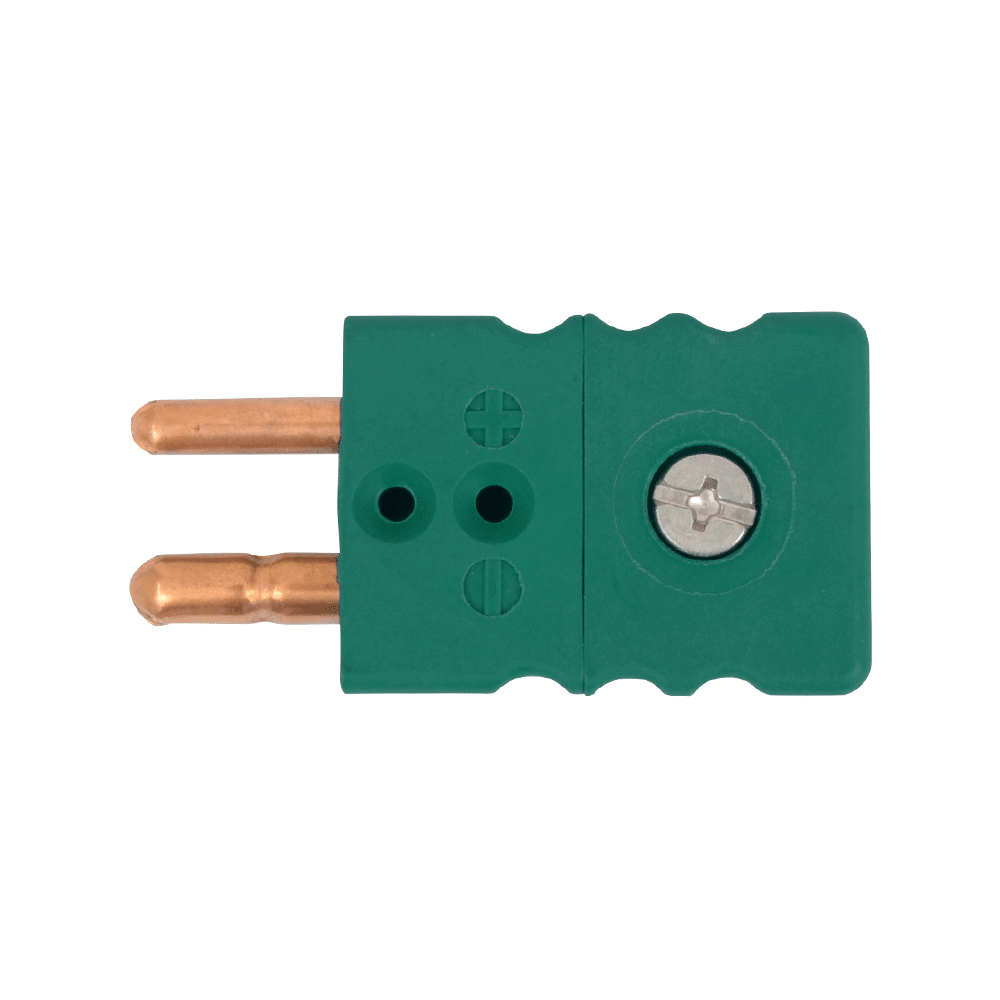

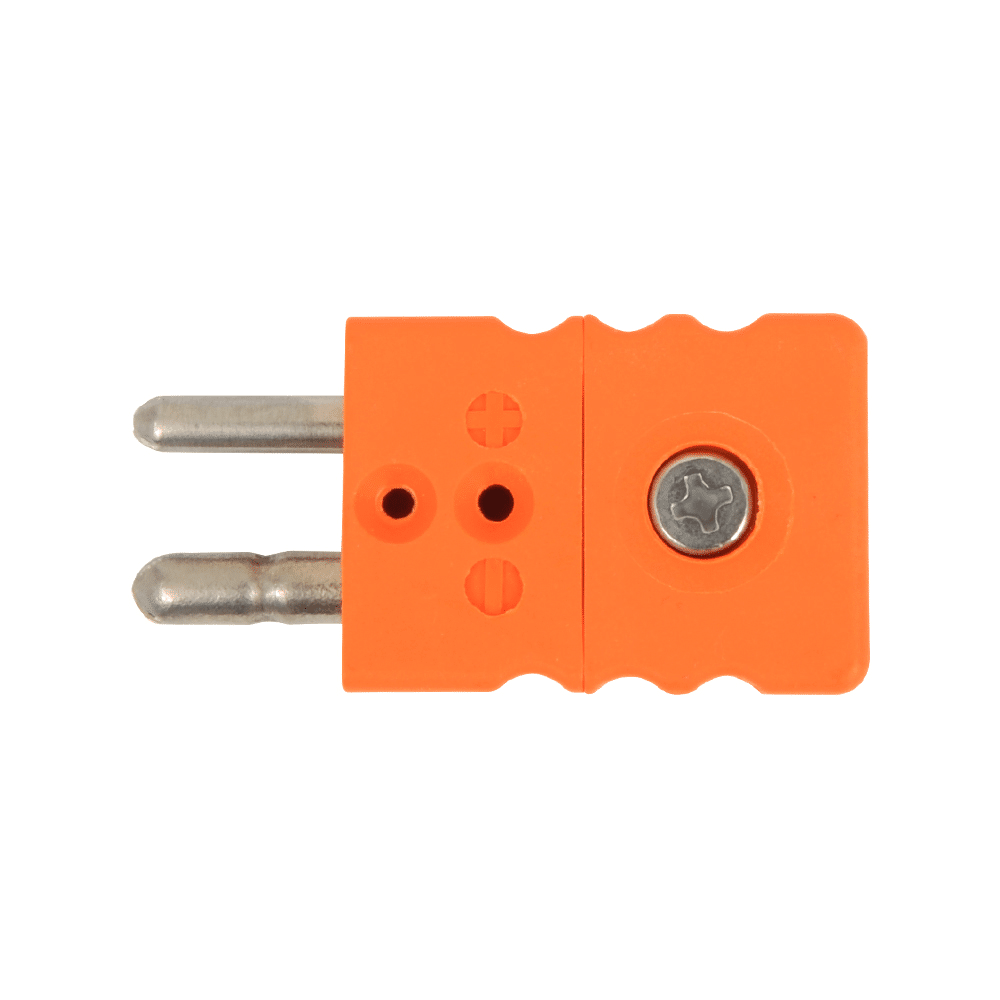

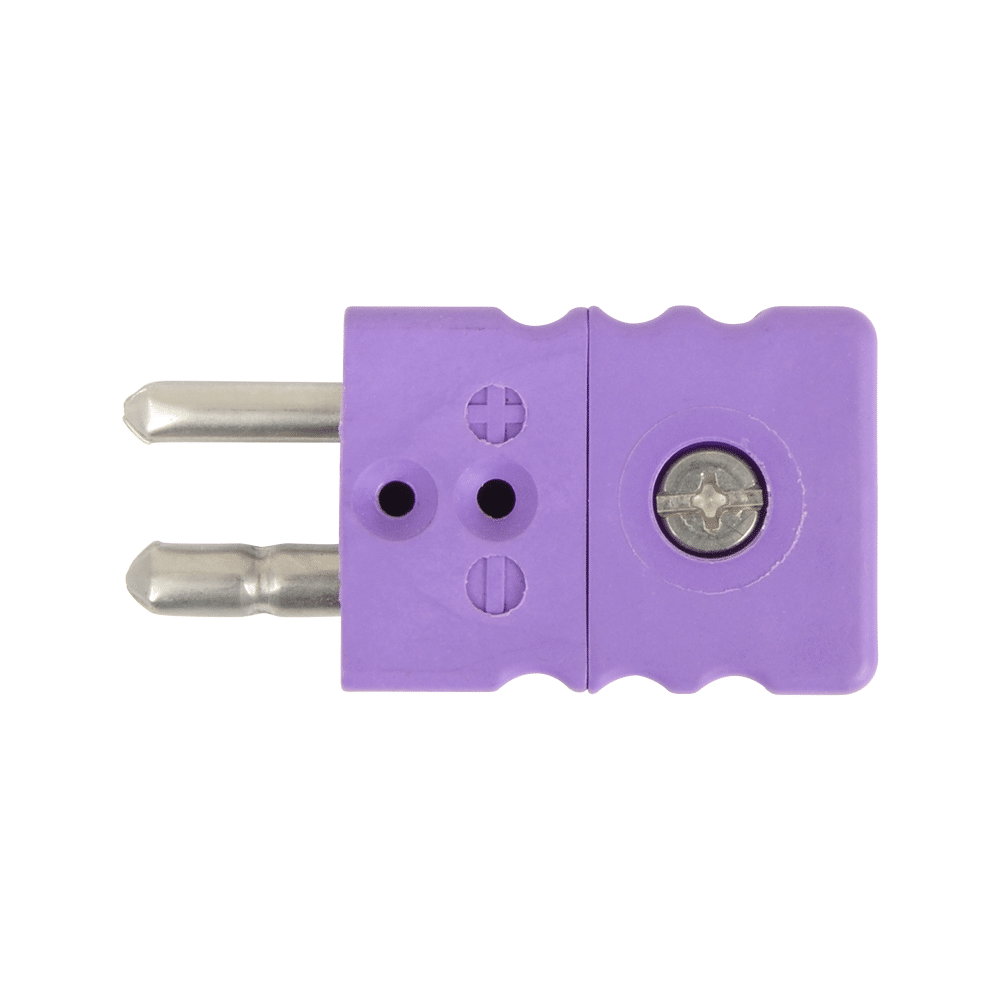

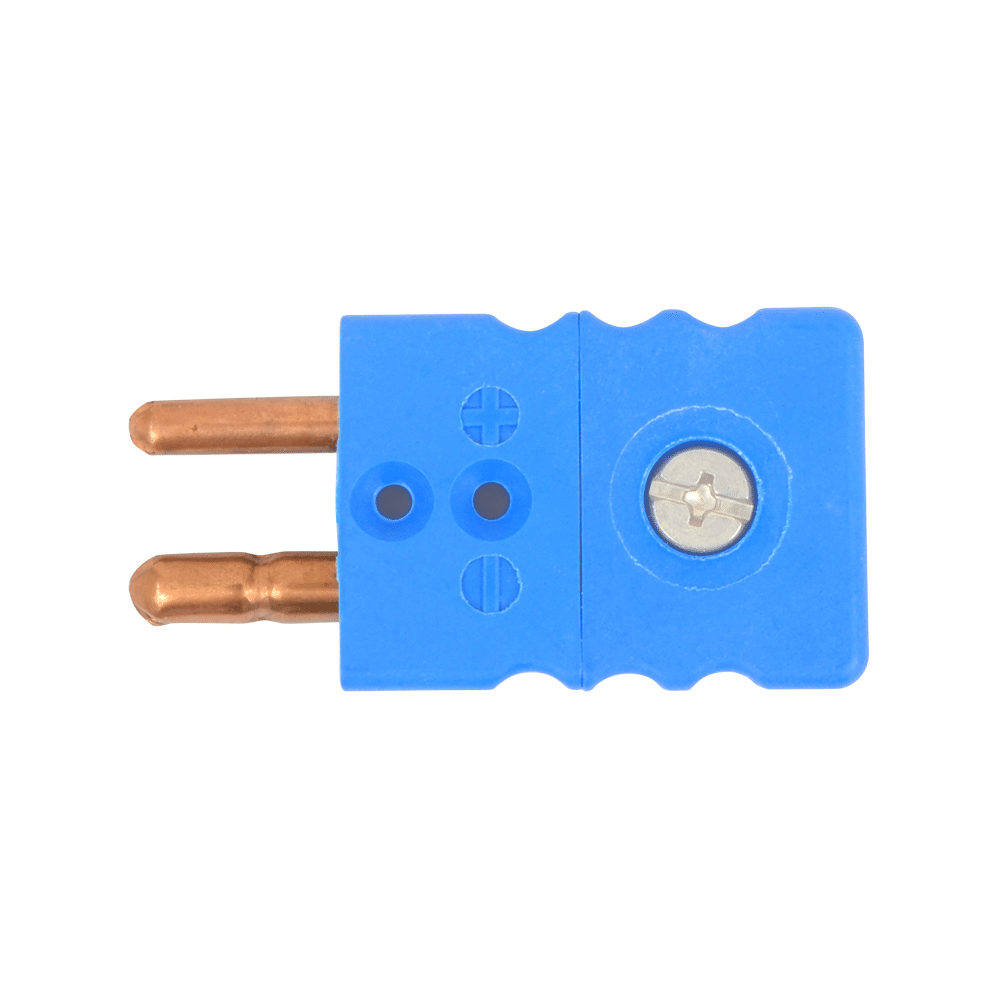

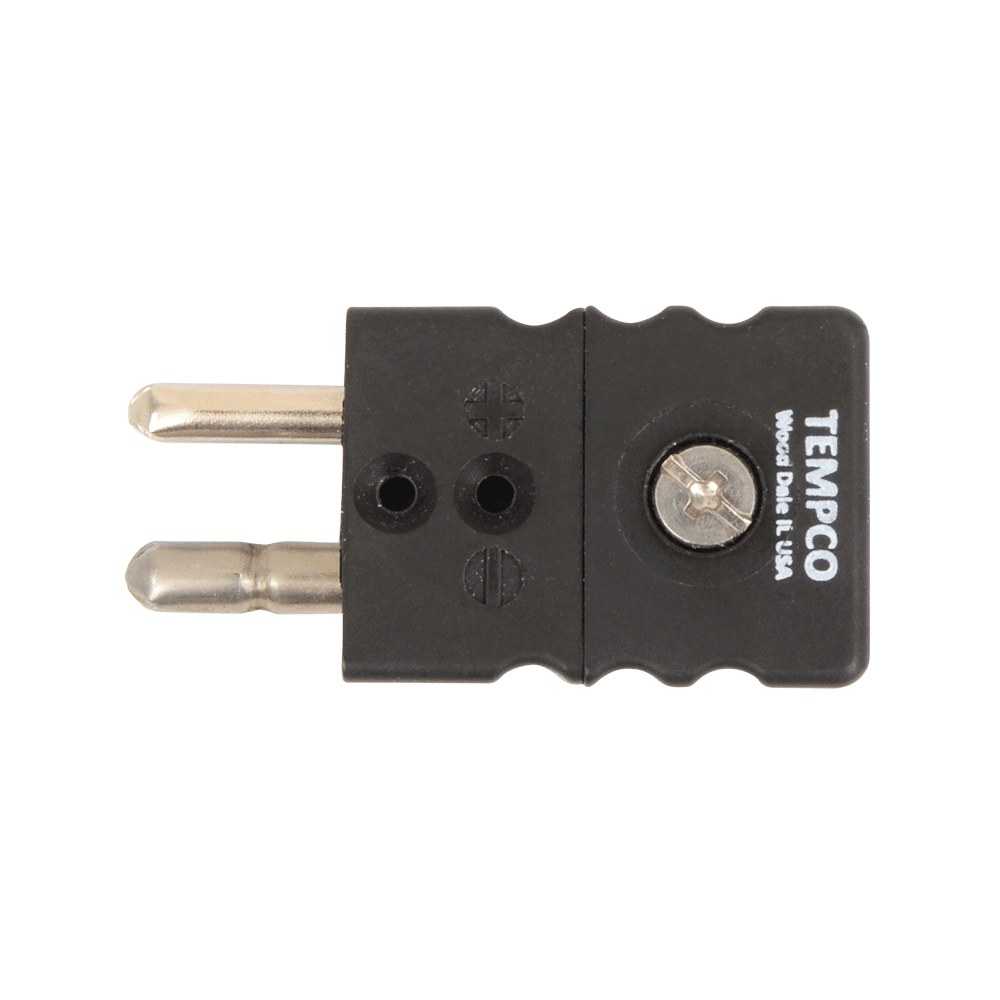

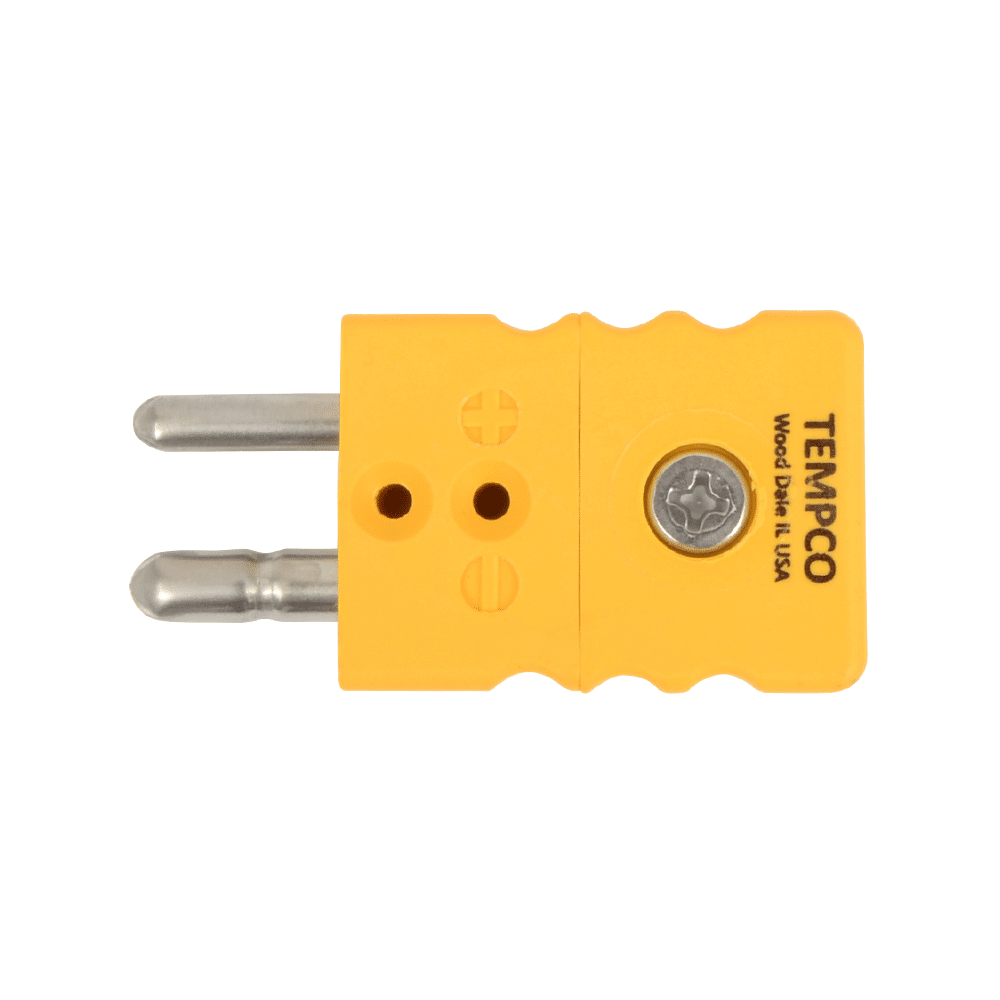

• Bodies are ANSI color coded Standard: glass-filled, high quality thermoplastic Miniature: glass-filled nylon
• Standard: glass-filled, high quality thermoplastic
• Miniature: glass-filled nylon
• Polarized pins made of material to match thermocouple calibrations Miniature R/S calibrations materials are compensated
• Miniature R/S calibrations materials are compensated
• Plugs available in hollow or solid pins Hollow pins not availabe for Miniature plugs
• Hollow pins not availabe for Miniature plugs
• Plugs and Jacks are interchangeable with other similar thermocouple connectors Standard pin spacing: 7/16 inch Miniature pin spacing: 5/16 inch
• Standard pin spacing: 7/16 inch
• Miniature pin spacing: 5/16 inch
• Can be imprinted with customer’s name (min. order & tooling charges apply)
• Single screw cover for effortless assembly
