Jack Panels

✴ Accepts standard plugs. Jacks are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent. Panels are manufactured from rugged, .090″ thick aluminum. Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements. Panels are normally supplied unassembled with all necessary hardware to assemble and install included. Can be furnished assembled at an additional cost.

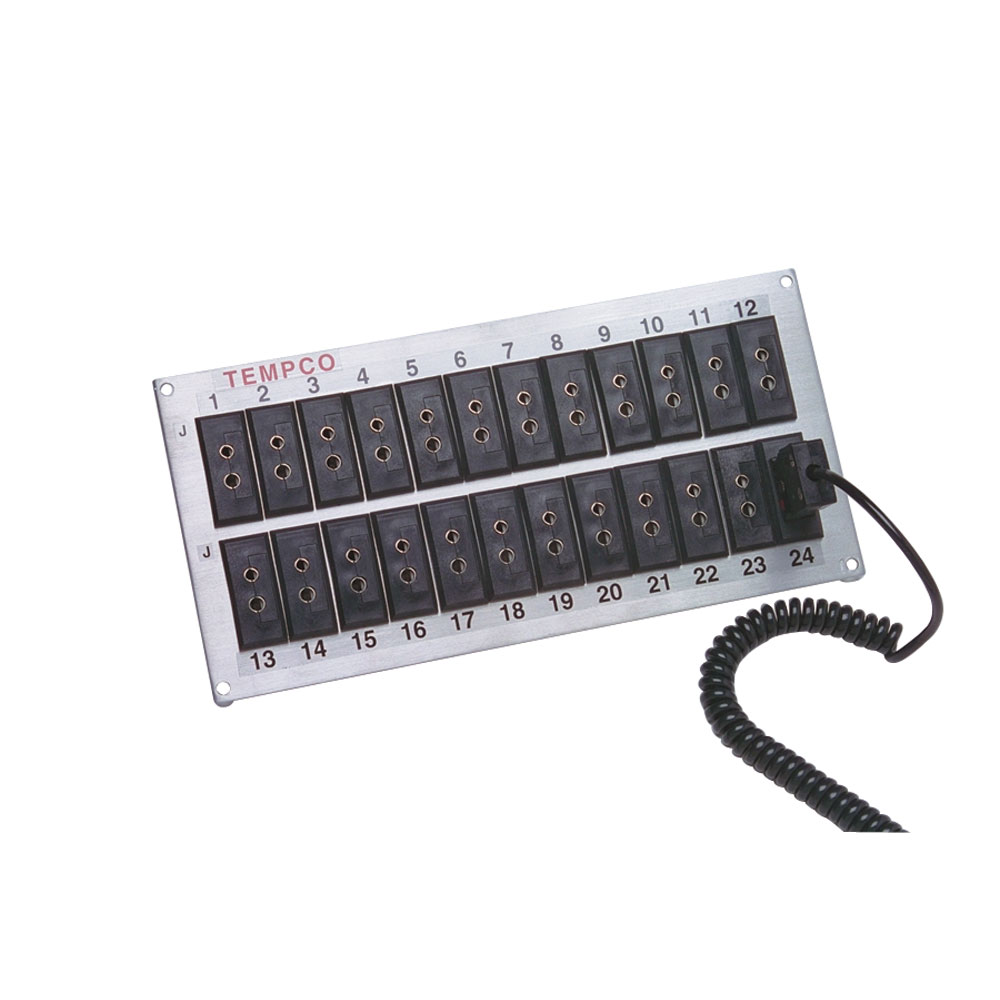

Designed to be space saving. Complements modern miniature instrumentation. Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent. Panels are manufactured of rugged .090″ thick aluminum. Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements. Panels are supplied unassembled for ease of wiring—all hardware necessary to assemble is included.

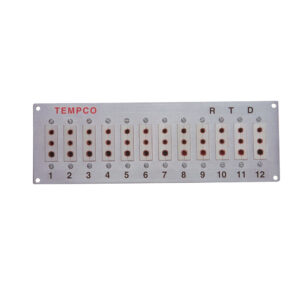

For use with RTDs and shielded thermocouples requiring 3 wires. Will accept standard 3-Pin connectors. Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent. Panels are manufactured of rugged .090″ thick aluminum. Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements. Panels are supplied unassembled for ease of wiring — all hardware necessary to assemble is included.

For use with RTDs and shielded thermocouples requiring 3 wires. Complements modern miniature instrumentation. Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent. Panels are manufactured of rugged .090″ thick aluminum. Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements. Panels are supplied unassembled for ease of wiring—all hardware necessary to assemble is included.

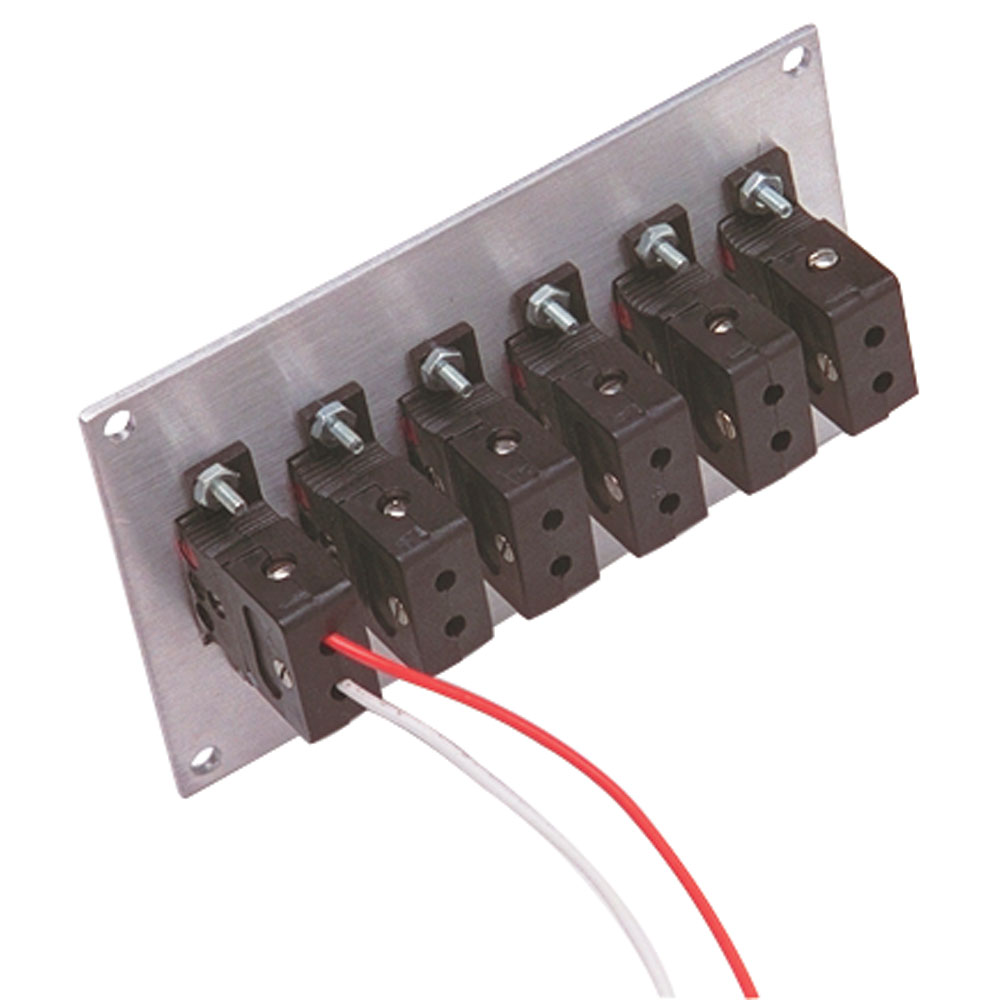

Accepts Standard Plugs. Jacks will accept up to 14-gauge wire. Jack bodies are ANSI color coded, glass-filled nylon with a temperature rating of 350°F (177°C) continuous and 400°F (204°C) intermittent. Panels are manufactured of rugged .090″ thick aluminum. Brushed and anodized finishes are available at an additional cost. Consult TEMPCO with your requirements. Jack rows are placed further apart than standard Jack Panels for ease of termination. Panels are supplied unassembled for ease of wiring — all hardware necessary to assemble is included.

Jack Panels are designed to be used with standard FS Style boxes. Panels are manufactured of rugged .090″ thick aluminum. Panels are designed to accept the safest maximum number of Jacks. Available for Standard and Miniature Jacks, 2-pin or 3-pin. Rated for 350°F (177°C) continuous and 400°F (204°C) intermittent. Panels measure 2-13/16″ high × 4-1/2″ long. Contact Tempco with your requirements for a custom Jack Panel.

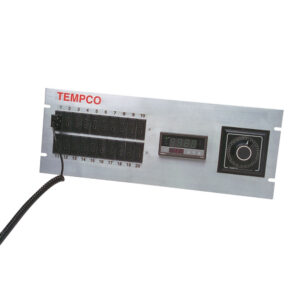

Panels are made of .090″ thick aluminum with a smooth mill finish. All panels have slotted holes positioned at E.I.A. standard spacing. Panels are available with any of the standard or miniature Panel Jacks shown in this section. Rack Panels come in standard heights of 3-1/2″, 5-1/4″, 7″, and 8-1/4″. Panels are supplied unassembled for ease of wiring—all hardware to assemble is included. Contact Tempco with your requirements for a custom 19″ Rack Panel.
