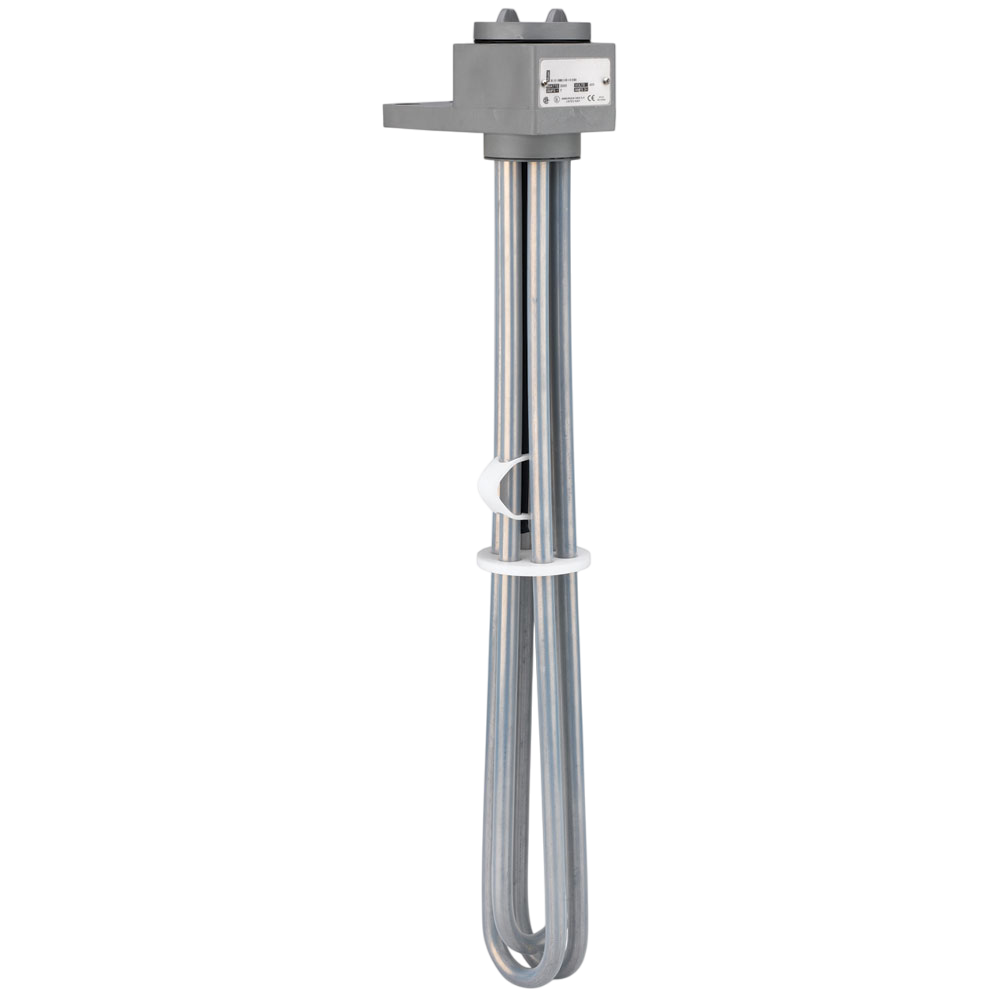

Fluoropolymer (PTFE) Three-Element Over-the-Side Heater (TMT06)

(PTFE) 3-Element OTS Heater Compatible with most plating tank solutions; inert to acids, anodizing and pickling solutions up to 190°F (88°C). and with chemical supplier for proper sheath material selection. Replaces more expensive alumina or graphite heaters.

• T1 thermal fuse protection standard; T2 bi-metal switch optional
• Grounded internal metal element for safety
• Vapor-tight polypropylene terminal enclosure with universal mounting flange
• Standard 3-ft. flexible PVC liquid-tight conduit
• 120, 240, 480 volts standard as listed — other voltages available
• Longer lengths available; consult Tempco
