Finned Channel Strip Heaters
Construction Styles
No options available for this section based on your selections

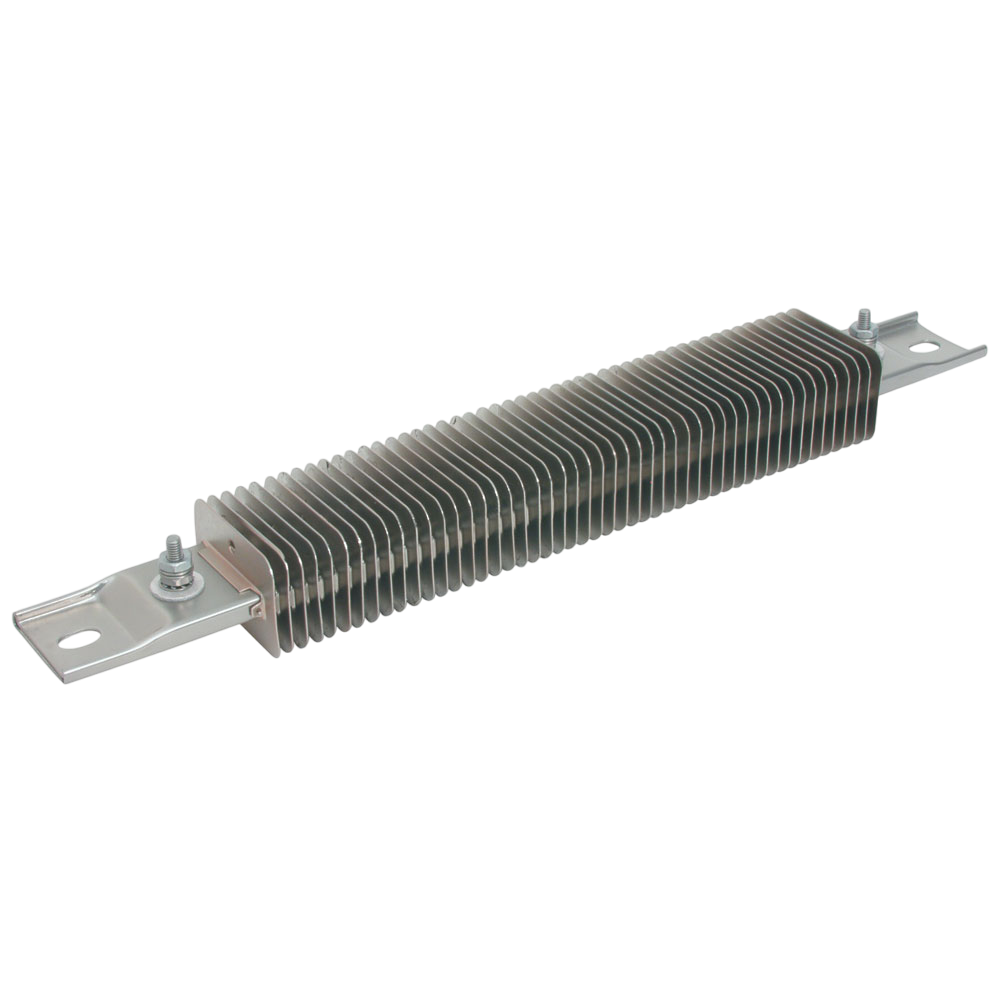

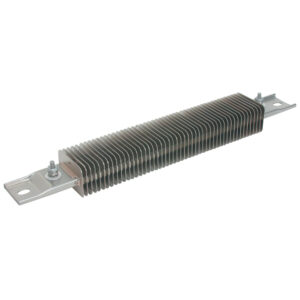

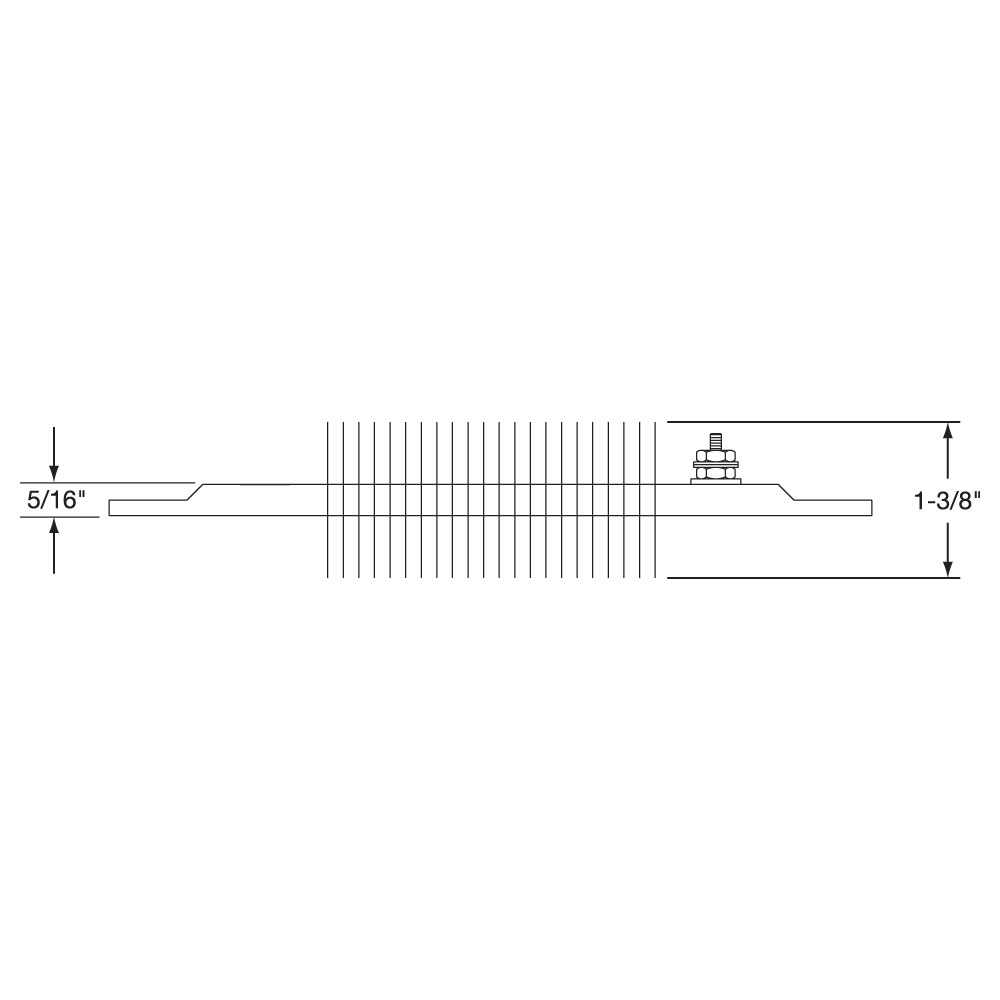

Finned Channel Strip Heater with Mounting Tabs
Heaters are designed with Nickel-plated steel fins that are mounted to the rectangular tubing (Stainless Steel fins are optional) and mounting tabs.
Electrical Terminations
No options available for this section based on your selections

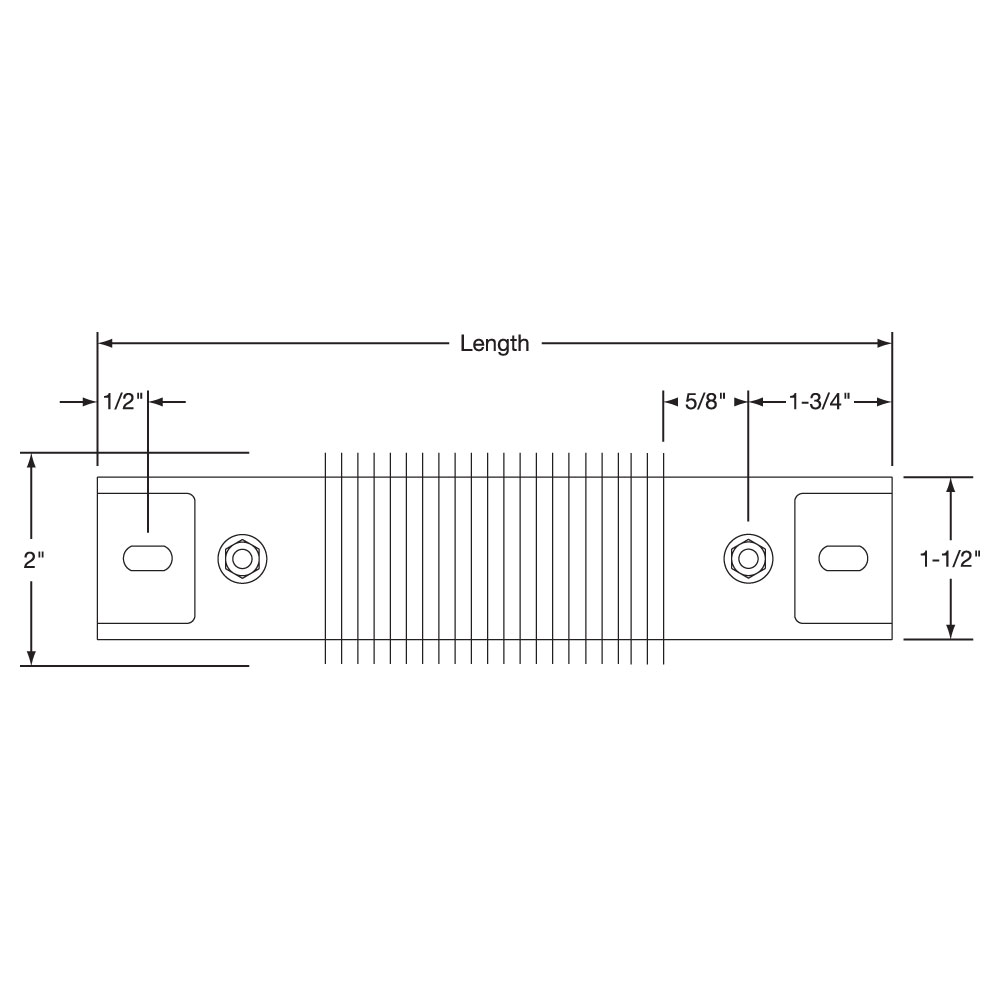

Type T1: Screw Terminals at each end
10-32 Screw Terminals at each end

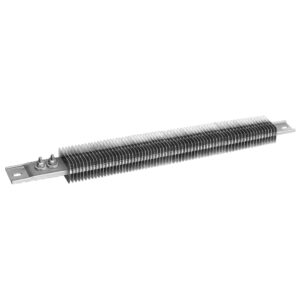

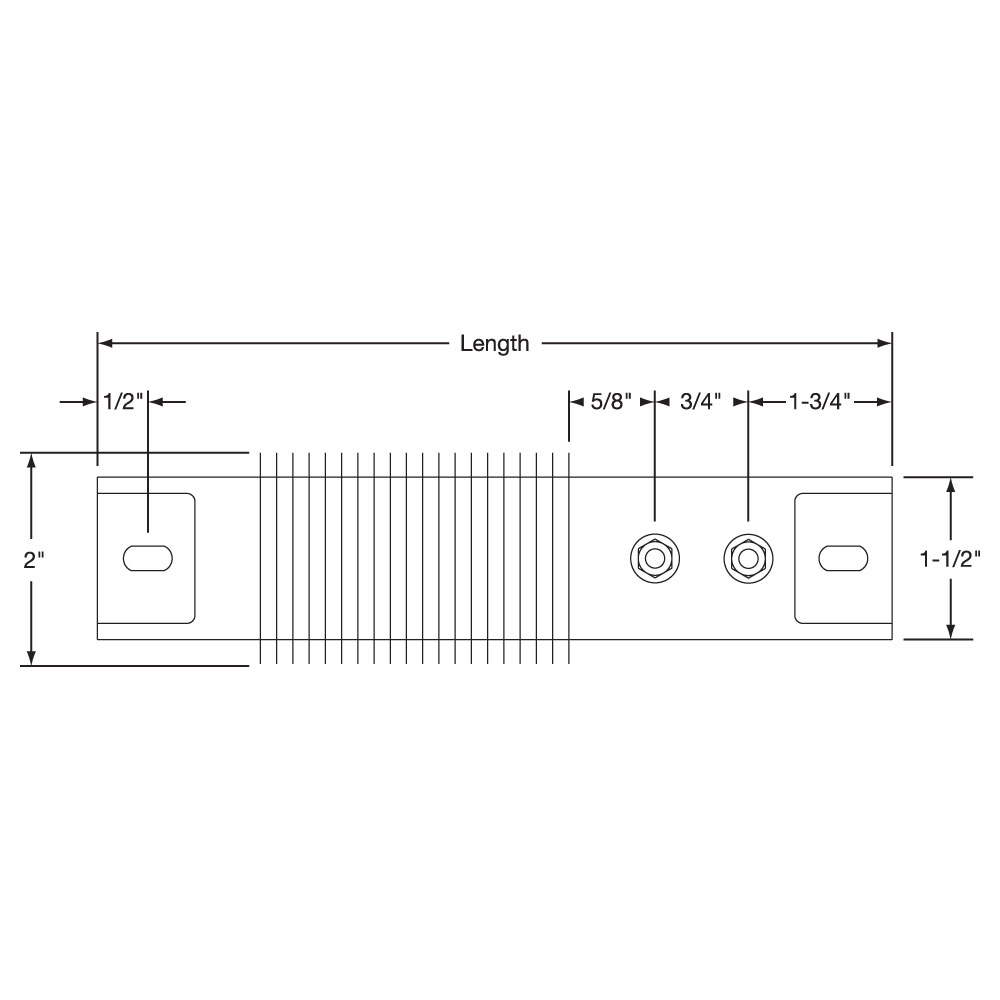

Type T2: Screw Terminals at one end
10-32 Screw Terminals (Tandem) at one end

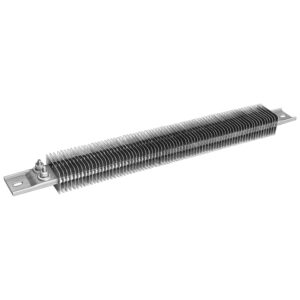

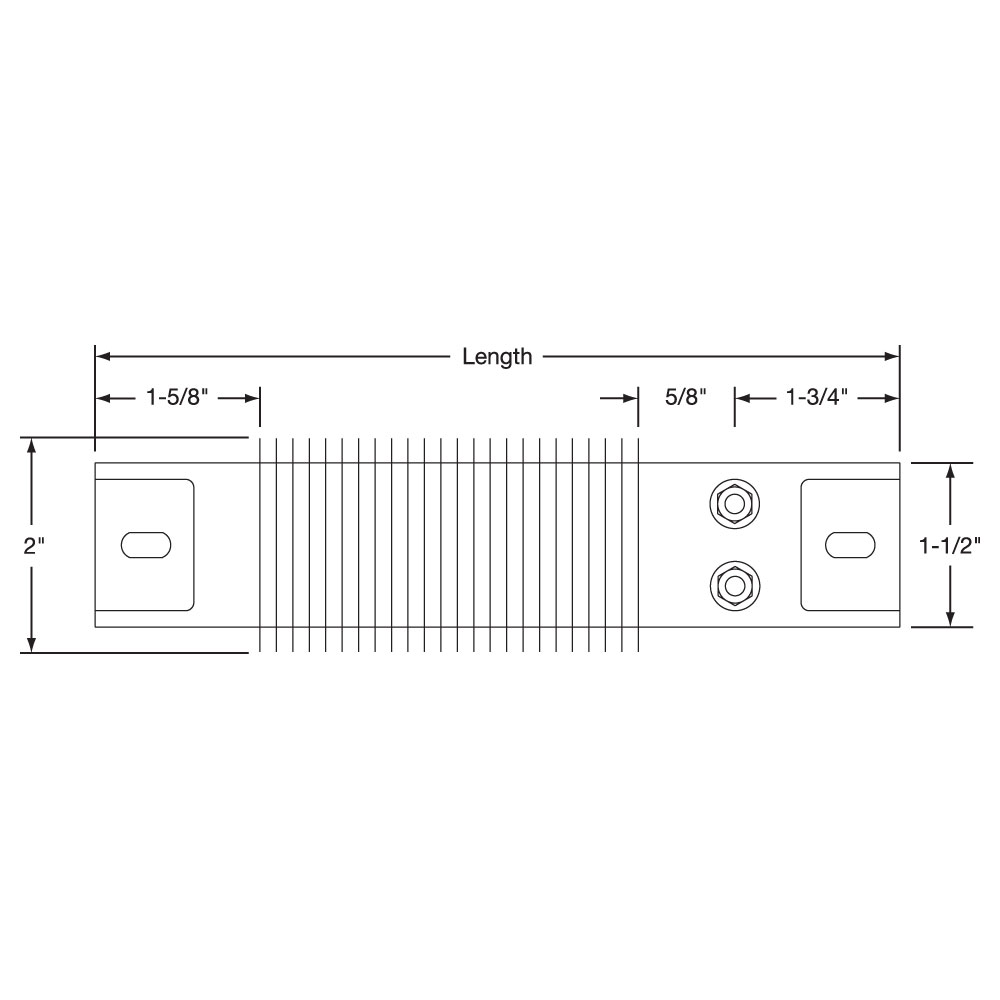

Type T3: Screw Terminals at one end
10-32 Screw Terminals (Parallel) at one end

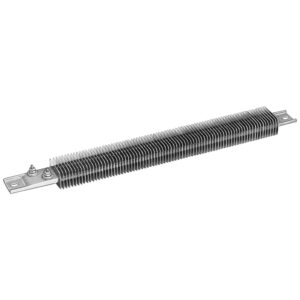

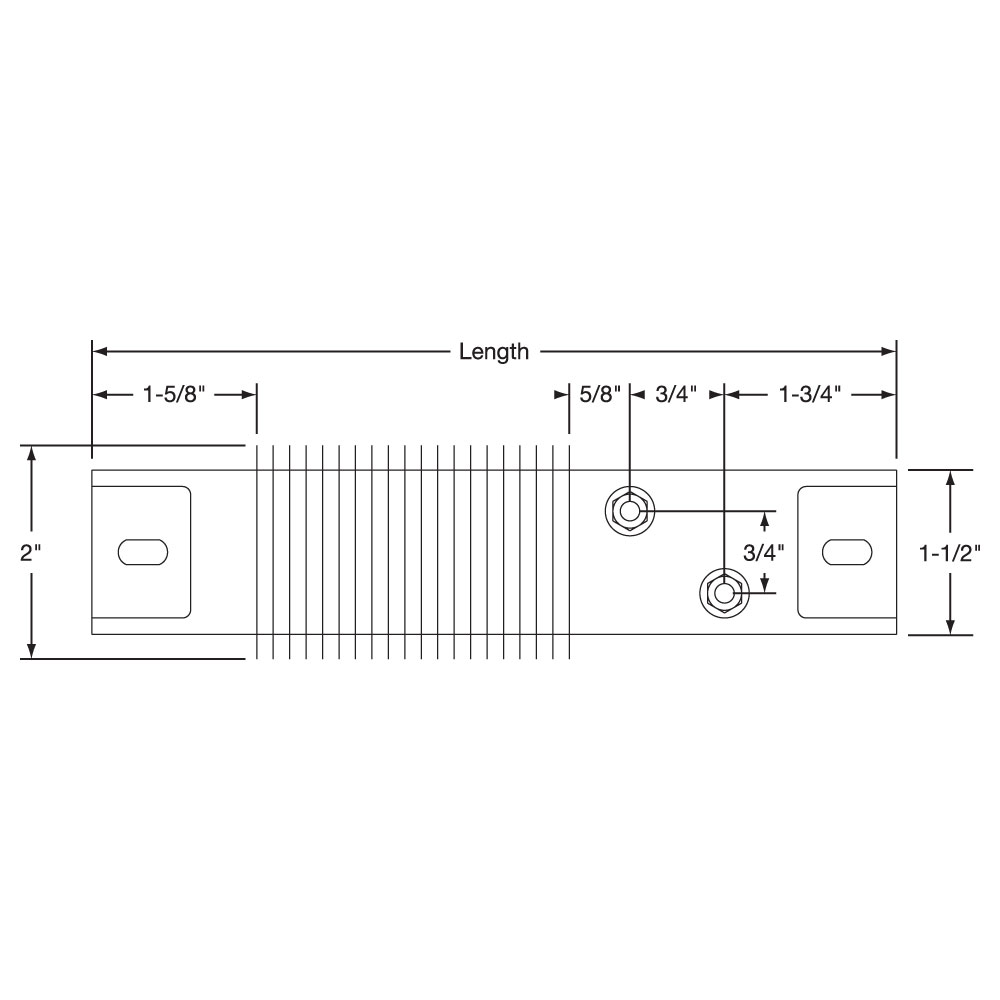

Type T4: Screw Terminals at one end
10-32 Screw Terminals offset (Diagonal) at one end
Termination Options
No options available for this section based on your selections
Igloo Ceramic Covers with Mounting Tabs
Igloo Ceramic terminal covers consist of two individual ceramic parts. With a tight-fitting cap and a solid base, an Igloo cover will fully insulate any standard 10-32 terminal lug used for electrical wiring hookups. Igloo covers can be assembled on all Channel Strip heaters with Type T1 and Type T4 screw terminals. Three different types of Igloo bases are available for your wiring convenience. Double Port In-Line, Double Port 90° and Single Port. When ordering, specify the type of Igloo.
Type C: Terminal Box (General Purpose) with Mounting Tabs
Terminal box has a 1/2″ trade size knockout (actual diameter 7/8″). Box provides excellent protection to exposed terminals. If armor-protected lead wires are required, specify armor and lead length.
Type P: Quick Disconnect Plugs with Mounting Tabs
High-Temperature Quick Disconnect Plug. If armor protected lead wires are required, specify armor and lead length.
Maximum Amps: 10 at 240VA
Maximum Volts: 250
Power Variations
No options available for this section based on your selections
Type DW: Distributed Wattage
Channel strip and finned channel strip heaters can be designed to vary the wattage along the length of the heater. Specify number of zones and the required watts and length per zone. Shown with T4 termination.
Type 3PH: Three Phase
In order to minimize the gauge of the wiring on high wattage channel strip and finned channel strip heaters, 3-phase elements can be designed.
Type DV_: Dual Voltage (1 and 2)
Channel strip and finned channel strip heaters can be designed using 3-wire series/parallel circuits for dual vltage applications. Whether the heater is run on the high or low voltage, the wattage will be the same.
DV1: 120/240 volts
DV2: 240/480 volts
Type DWV: Dual Circuits
Independent resistance elements can be designed in a single channel strip or finned channel strip heater for added versatility.
Type GL: Ground Lead/Sheath
For those applications requiring a separate ground lead attached to the channel strip or finned channgel strip heater sheath.
Additional Options
No options available for this section based on your selections

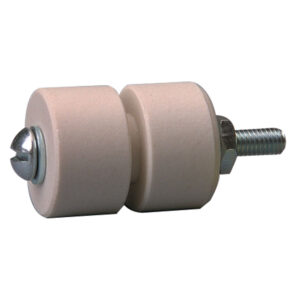

Secondary Insulating Bushings

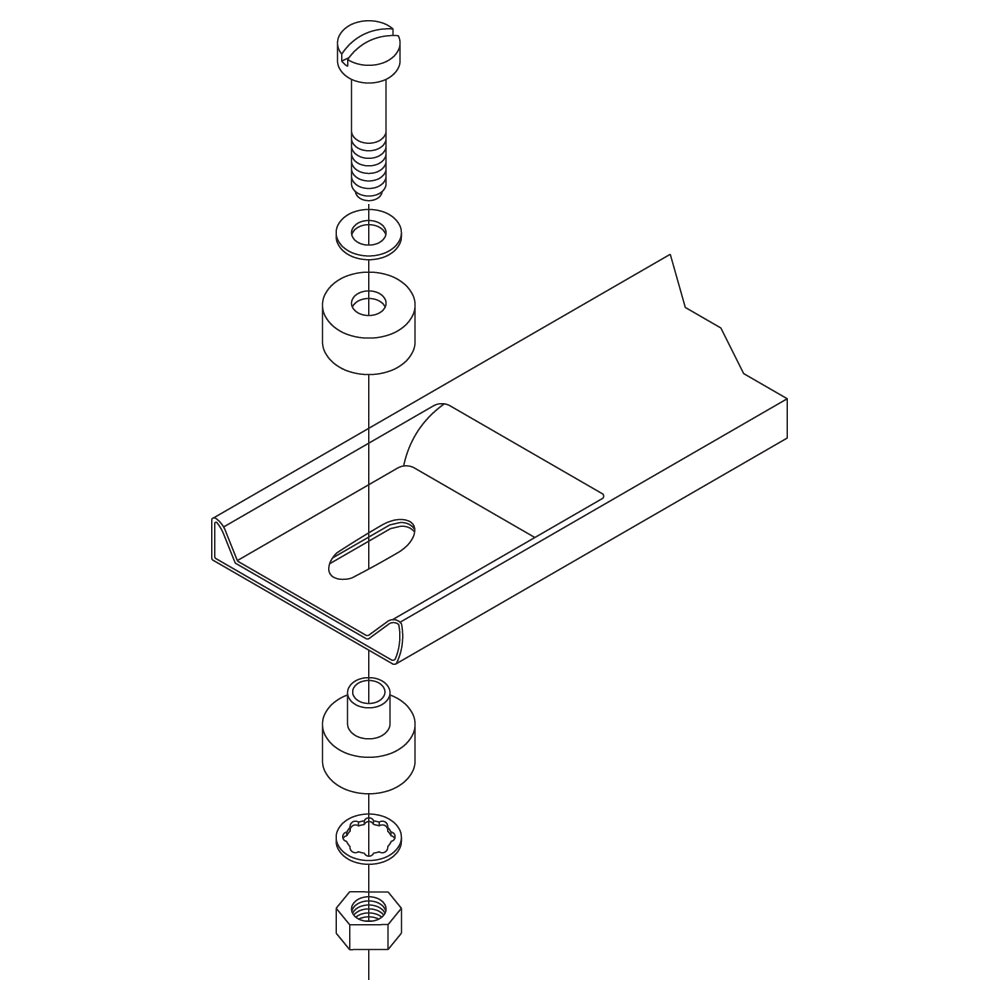

Used to mount finned strip heaters in air heating applications. Also can be used when it is necessary to electrically isolate the heater from ground. When Insulating Bushings are required, a 1/2″ × 5/8″ slot is substituted for the standard slot size (5/16″ × 1/2″). Insulating Bushing Assembly Part Number: CERR-1001
Stainless Steel Sheath
For corrosive atmospheres and/or sheath temperatures up to 1200°F (650°C), stainless steel sheath is available.
