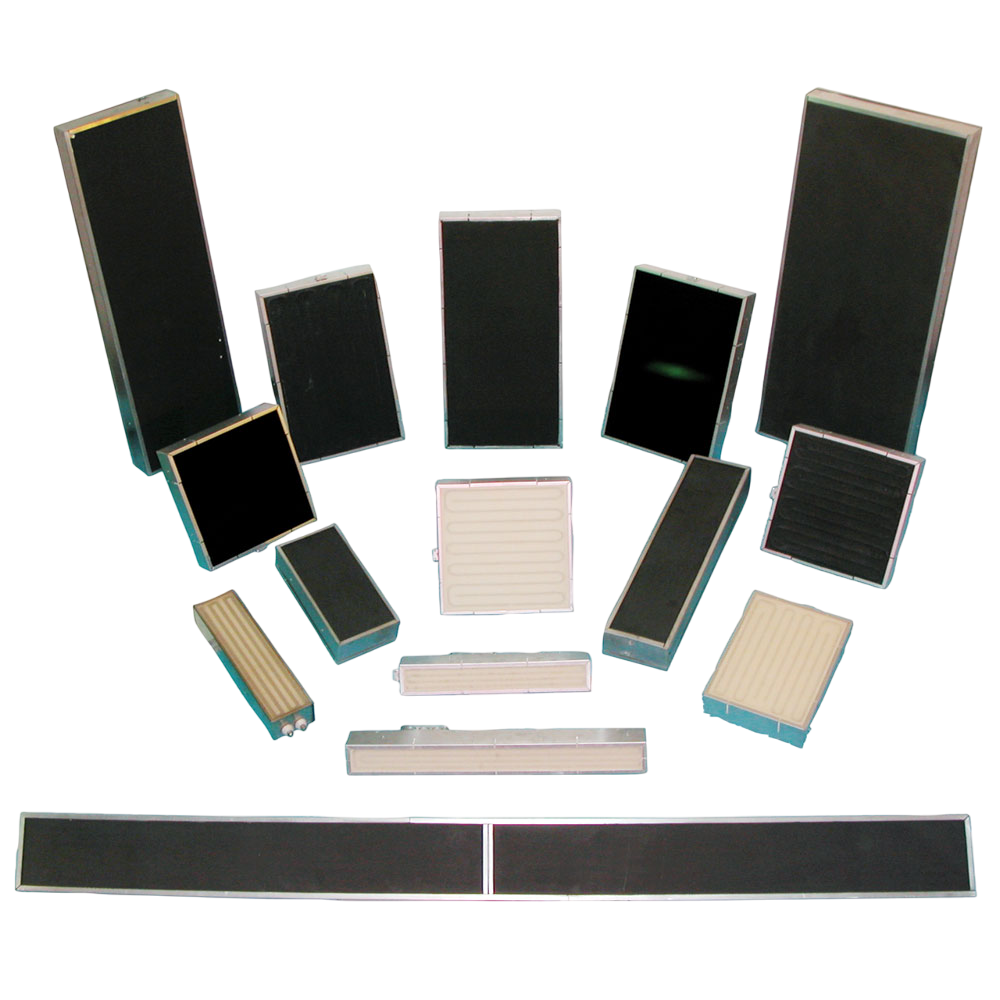

Infrared Radiant Panels
Construction Styles
No options available for this section based on your selections

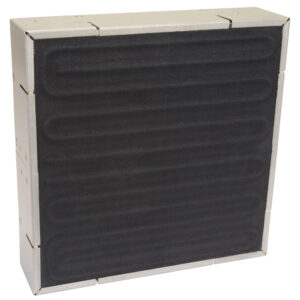

Style RPB
Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 30″W × 84″L can be manufactured.
Maximum Watt Density: 25 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 900°C (1652°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

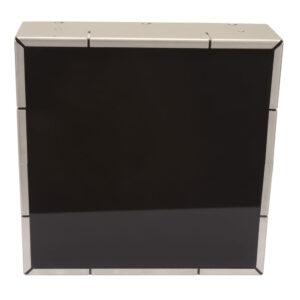

Style RPG
Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 34″W × 36″L can be manufactured.
Maximum Watt Density:20 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 750°C (1382°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

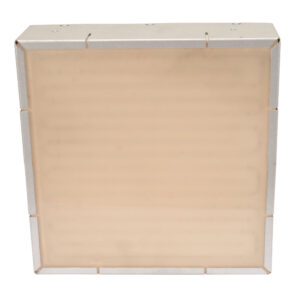

Style RPW
Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 24″W × 24″L can be manufactured.
Maximum Watt Density: 40 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 800°C (1472°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

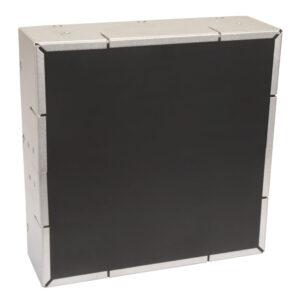

Style RPM
Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 24″W × 48″L can be manufactured.
Maximum Watt Density:15 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 700°C (1292°F)
Wavelength Range: Between 3.0 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size
Sensor Options
No options available for this section based on your selections

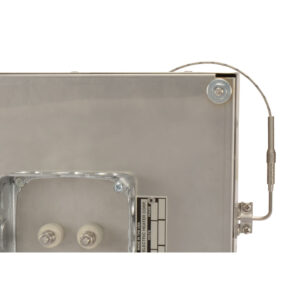

Standard Side Mount Thermowell With Clamp
The standard Side Mount Thermowell with Clamp is a 5″ long, 4 mm ID quartz glass tube, installed in the short side of the panel, just behind the resistance coil. The screw pressure clamp and thermowell are designed to hold a 0.125″ diameter probe. Replacement TC Probes (with 48″ leads, SS overbraid)
Type K — Part Number: MTA00839
Type J — Part Numbe: MTA00840

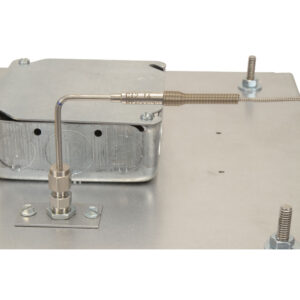

Back Mount Thermowell with Compression Fitting
The optional Back Mount Thermowell with Adjustable Compression Fitting is a short, 4 mm ID quartz glass tube, mounted perpendicular to the face with a ceramic disk at the bottom. The compression fitting and glass tube are sized for a 0.125″ diameter probe. Replacement TC Probes (with 48″ leads, SS overbraid)
Type K — Part Number: MTA00839
Type J — Part Numbe: MTA00840

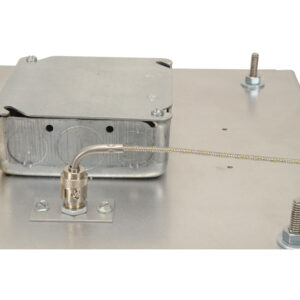

Back Mount Thermowell with Bayonet Fitting
Back Mount Thermowell with Bayonet Fitting The optional Back Mount Thermowell with Bayonet Fitting is a short, 8 mm ID quartz glass tube, mounted perpendicular to the face with a ceramic disk at the bottom. The bayonet fitting and glass tube are sized for a 0.187″ diameter probe. Replacement TC Probes (with 48″ leads, SS overbraid)
Type K — Part Number: TCP50270
Type J — Part Number: TCP50269

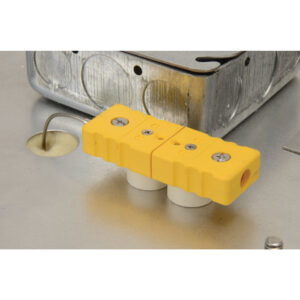

Back Mount Thermowell – Parallel to Face
The optional Back Mount Thermowell (Parallel to Face) is a 5″, 6 mm ID quartz glass tube with a soft 90° bend, mounted along the face, exiting in the rear. A maximum 0.063″ diameter probe is required to make the bend. Screws and ceramic spacers are provided. Replacement TC Probes (with connector set)
Type K — Part Number: MTA01546
Type J — Part Number: MTA01775
