Ceramic E-Mitters®

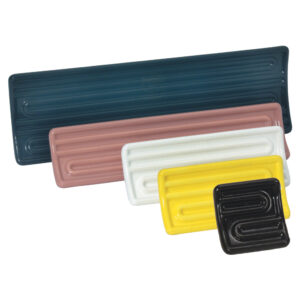

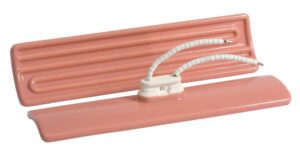

These ceramic e-mitters come in 5 sizes. They utilize a metal reflector to direct the heat to the application.

These ceramic e-mitters come in one size, 120 mm x 120 mm.

These ceramic e-mitters come in 4 sizes. They contain insulation that keeps the heat generated towards the application and reduces reliance on reflectors in the installation.

Linear Housings can be designed with custom configuations using any combination of Ceramic E-mitter Series necessary. They are available in preconfigured sizes or Tempco can design a custom heater to suit your application.

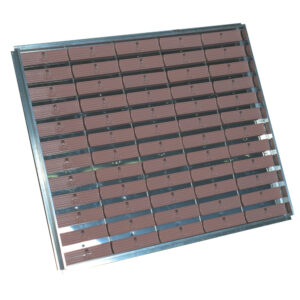

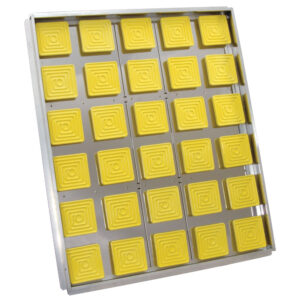

Array Housing Assemblies can be designed with custom configuations using any combination of Ceramic E-mitter Series necessary. They are available in preconfigured sizes or Tempco can design a custom heater to suit your application.

These hollow ceramic heaters have a unique thin wall construction and geometrical shape to facilitate fast heating and cooling rates. The resistance coil is embedded into the specially designed circular ceramic E-mitter surface, providing extremely uniform heat transmission with low element surface temperatures. Because of the convenient Edison Screw-In style termination, CRE & CRR E-Mitters are recognized as a tremendously versatile source for localized spot heating. They can be used virtually anywhere quickly and easily by simply installing the CRE E-Mitter into common porcelain/ceramic insulated bulb sockets—like any ordinary light bulb.

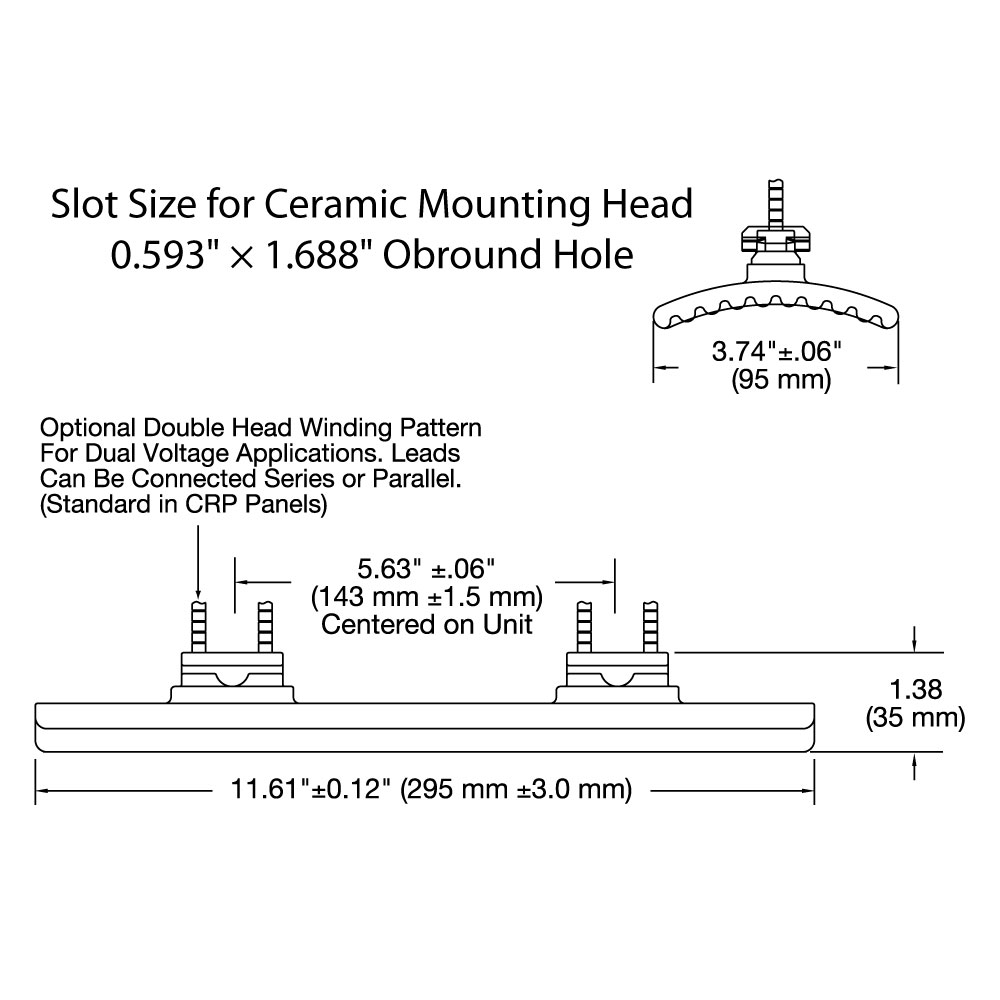

Design Features Size: 95 mm x 295 mm (3.72″ x 11.61″) Universal mount designed to be dropped into existing systems regardless of manufacturer. Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available. Long operating life—over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions. 2.5 to 6µm infrared radiation wavelength

Design Features Size:60 mm x 245 mm (2.36″ x 9.65″) Universal mount designed to be dropped into existing systems regardless of manufacturer. Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available. Long operating life—over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions. 2.5 to 6µm infrared radiation wavelength

Design Features Size: 60 mm x 163 mm (2.36″ x 6.42″) Universal mount designed to be dropped into existing systems regardless of manufacturer. Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available. Long operating life—over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions. 2.5 to 6µm infrared radiation wavelength

Design Features Size: 60 mm x 122 mm (2.36″ x 4.80″) Universal mount designed to be dropped into existing systems regardless of manufacturer. Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available. Long operating life—over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions. 2.5 to 6µm infrared radiation wavelength

Design Features Size: 60 mm x 60 mm (2.36″ x 2.36″) Universal mount designed to be dropped into existing systems regardless of manufacturer. Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available. Long operating life—over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions. 2.5 to 6µm infrared radiation wavelength

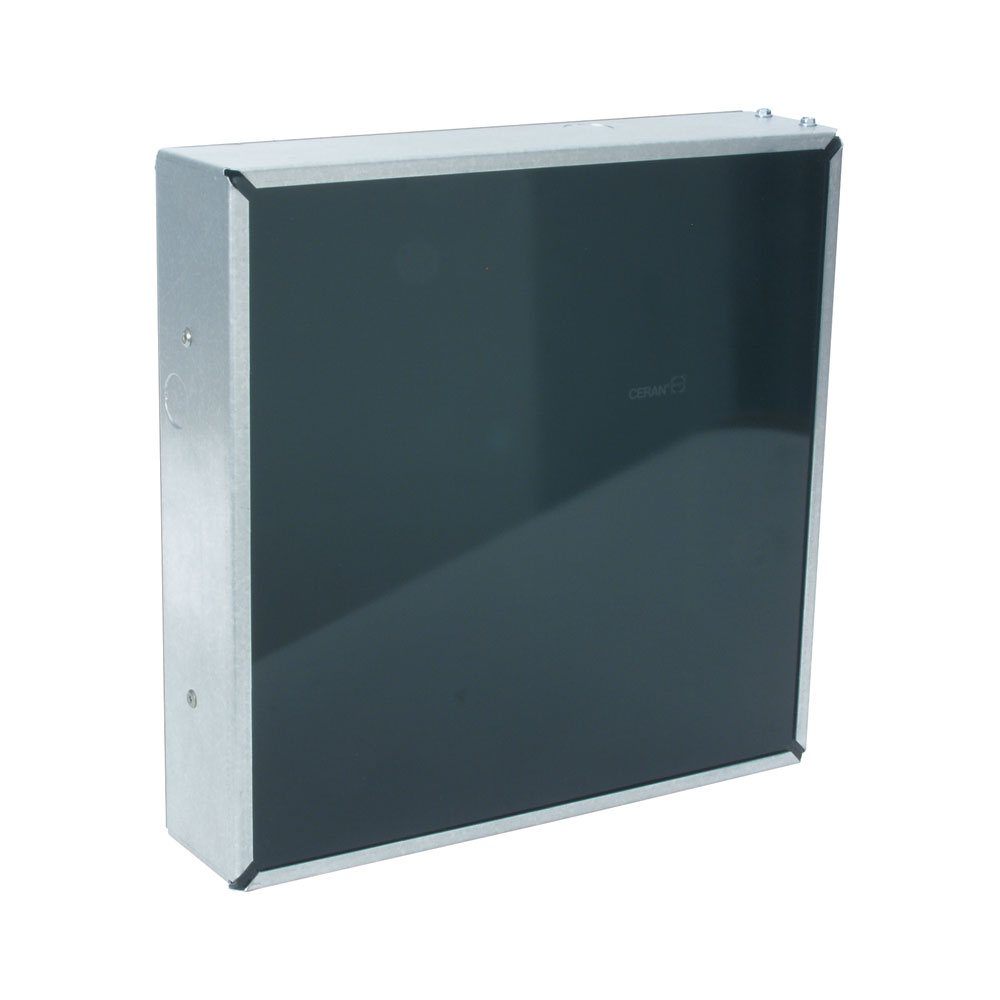

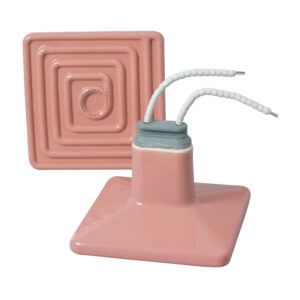

Design Features Size: 122 mm (4.80″) square Universal mount designed to be dropped into existing systems regardless of manufacturer. Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available. Long operating life—over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions. 2.5 to 6µm infrared radiation wavelength

Design Features Size: 122 mm (4.80″) Square Universal mount designed to be dropped into existing systems regardless of manufacturer Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available Long operating life – over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Design Features Size: 122 mm (4.80″) Square Long neck series allows wiring to be better insulated from the heat of the face of the E-mitter. Universal mount designed to be dropped into existing systems regardless of manufacturer Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available Long operating life – over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Design Features Size: 60 mm x 245 mm (2.36″ x 9.65″) Universal mount designed to be dropped into existing systems regardless of manufacturer Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available Long operating life – over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Design Features Size: 60 mm x 122 mm (2.36″ x 4.80″) Universal mount designed to be dropped into existing systems regardless of manufacturer Optional color changing material to indicate if E-mitter is on or off. Standard stocked voltage: 120 or 220/240V as noted; other voltages are available Long operating life – over 10,000-plus hours of continuous operation under normal conditions Performance is unaffected by vibration or adverse atmospheric conditions 2.5 to 6µm infrared radiation wavelength

Design Features Designed for use with CRB, CRC, CRN or CRZ E-Mitters Lightweight extruded aluminum housing with 5/16-18 mounting bolts for use up to 250°C (482°F) extrusion temperature E-Mitters are easily replaced by removing the top cover Internal mounting hole pattern simplifies mixing and matching E-mitter sizes and ratings Space between reflector and housing can be used with any manufactruer’s standard 60 x 245 mm or 60 x 122 mm heaters Wiring entrance 7.8″ diameter at both ends, for 1/2″ trade size electrical fittings

Design Features Standard colors are metamorphing yellow (cold) to orange (hot), and traditional white. Optional colors are metamorphing rose (cold) to grey (hot) and black. Dark red face glass is standard. Glass provides for ease of cleaning. Low profile 20 ga. aluminized steel or stainless steel housing. Standard stocked voltage: 120, 220-240V or 480V as noted; other voltages are available. Low noise type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available. Watt density range: from 11w/in2 to 35w/in2 Standard operating temp range: 750°F to 1300°F Best when used at radiation distances of 4-10″ from application. Performance is unaffected by vibration or adverse atmospheric conditions. 3 to 6µm infrared radiation wavelength. Made to order.

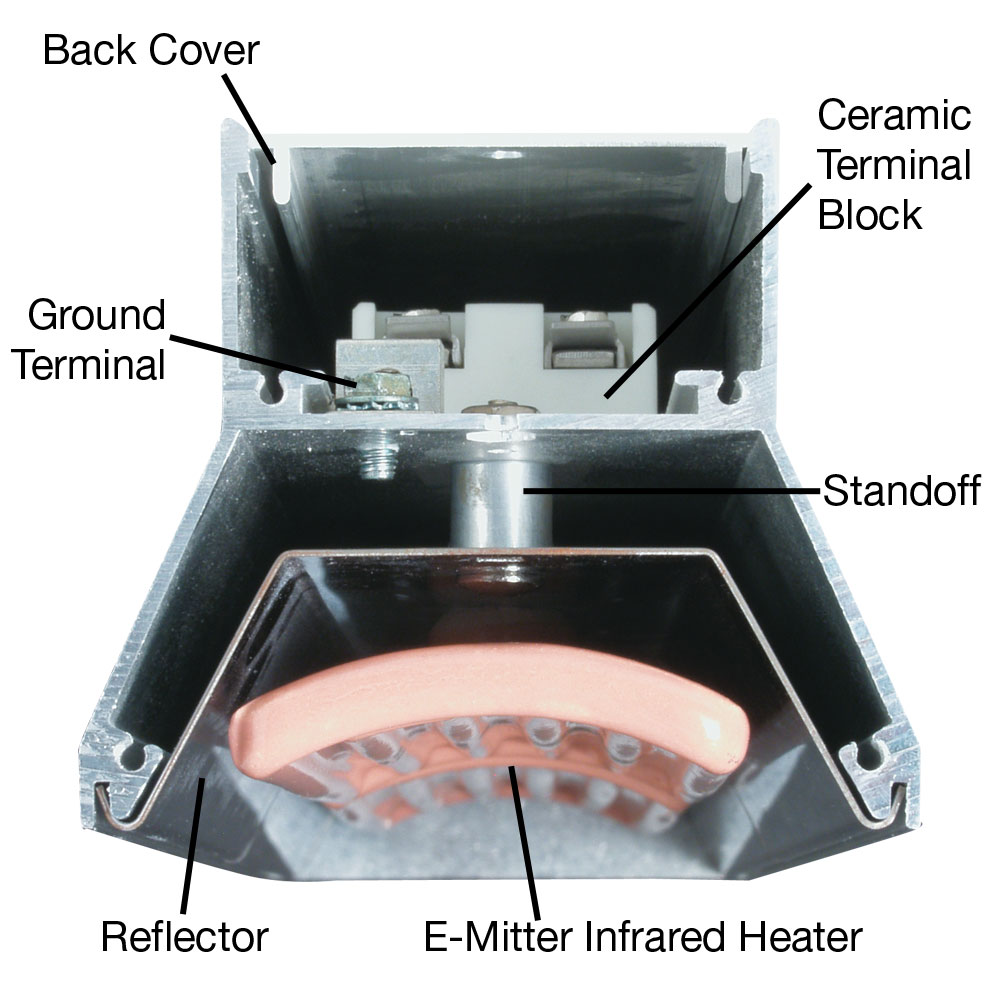

Design Features Custom Engineered/Manufactured Lightweight extruded aluminum outer housing Each heater’s power leads are connected to an individual ceramic terminal block NCC or Nickel wire with heat resistant insulation is used for wiring between terminal blocks Zones with different radiant heat levels can be achieved by using different wattage heaters (each zone would have a heater with built-in thermocouple for temperature control) Shipped fully assembled Optional factory wiring and power control panels Optional ceramic fiber insulation in wiring space Optional entrances in rear cover or sides to customer specs

Design Features Bulb Shape construction Provides safe, clean, radiant heat anywhere Easy installation Not affected by vibration— high mechanical strength Good resistance to atmospheric contamination Does not generate visible light – produces only heat Reversible color change feature 3.5 to 7µm infrared radiation peak wavelength

Design Features Flat Face construction Provides safe, clean, radiant heat anywhere Easy installation Not affected by vibration— high mechanical strength Good resistance to atmospheric contamination Does not generate visible light – produces only heat Reversible color change feature 3.5 to 7µm infrared radiation peak wavelength

Design Features Tube Shape Construction Provides safe, clean, radiant heat anywhere Easy installation Not affected by vibration— high mechanical strength Good resistance to atmospheric contamination Does not generate visible light – produces only heat Reversible color change feature 3.5 to 7µm infrared radiation peak wavelength

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications. When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

Standard metamorphing color change from Rose (cold) to Grey (hot)

Standard color, no color change

Optional metamorphing color change from Yellow (cold) to Orange (hot)

Optional color, no color change

E-mitter color is not important to the application

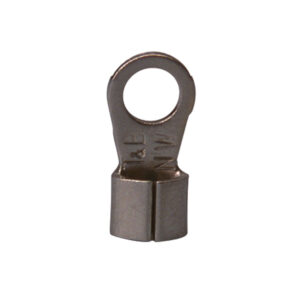

Nickel Plated Steel Uninsulated Terminals

Nickel Plated Steel Uninsulated Terminals

Nickel Plated Steel Uninsulated Terminals

18″ armor cable over 24″ leads ; if longer cable is required, specify when ordering.

18″ armor cable over 24″ leads; if longer cable is required, specify when ordering.

18″ wire braid over 24″ leads; if longer cable is required, specify when ordering.

450°C rating — 12″ long plain leads; if longer cable is required, specify when ordering.

Includes ground wire 16 ga. cable (Up to 15 Amps) 14 ga. cable (Up to 22 Amps Max.) 12 ga. cable (Up to 28 Amps Max.) Max. terminal box temperature 194°F (90°C) If longer cable is required, specify when ordering.

Internal connections made between heaters in the factory. Customer supplied power is connected to a single terminal block.

Heater is terminated with E26 Standard Base that fits standard screw-in base Part Number: CRK00016

If your filter selections do not return your desired results from our standard configurations, please continue to Refine Results for your specifications. When you are finished, save your selections with the Save Results for Quote button (at the right of this page) and choose Request for Quote for further assistance.

Maximum Voltage: 600 VAC,

Maximum Current: 20 Amp

Maximum Temperature: 450°C/842°F

Wire Gauge: 20 to 12 ga.

Hardware: Stainless Steel

Terminals: #8 Screw

Body Material: Steatite

Part Number: EHD-108-101

Maximum Voltage: 600 VAC,

Maximum Current: 20 Amp

Maximum Temperature: 450°C/842°F

Wire Gauge: 20 to 12 ga.

Hardware: Stainless Steel

Terminals: #8 Screw

Body Material: Steatite

Part Number: EHD-108-121

Maximum Voltage: 380 VAC,

Maximum Current: 30 Amp

Maximum Temperature: 240°C/464°F

Wire Gauge: 26 to 12 ga. stranded, 26-14 solid

Screw: M3, zinc plated steel

Terminal Body: Nickel plated brass

Body Material: Porcelain

Agency Approvals: CE & VDE

Part Number: EHD-108-116

Maximum Voltage: 380 VAC,

Maximum Current: 30 Amp

Maximum Temperature: 240°C/464°F

Wire Gauge: 26 to 12 ga. stranded, 26-14 solid

Screw: M3, zinc plated steel

Terminal Body: Nickel plated brass

Body Material: Porcelain

Agency Approvals: CE & VDE

Part Number: EHD-108-117

Maximum Voltage: 380 VAC,

Maximum Current: 30 Amp

Maximum Temperature: 240°C/464°F

Wire Gauge: 26 to 12 ga. stranded, 26-14 solid

Screw: M3, zinc plated steel

Terminal Body: Nickel plated brass

Body Material: Porcelain

Agency Approvals: CE & VDE

Part Number: EHD-108-118

Maximum Voltage: 600 VAC,

Maximum Current: 50 Amp

Maximum Temperature: 200°C/392°F

Wire Gauge: 14 to 8 ga.

Screw: M4, zinc plated steel

Terminal Body: Nickel plated brass

Body Material: Porcelain

Agency Approval: UL (File # E69841)

Stock Number: EHD-108-114

MFR Part Number: 4010-B

Maximum Voltage: 600 VAC,

Maximum Current: 50 Amp

Maximum Temperature: 200°C/392°F

Wire Gauge: 14 to 8 ga.

Screw: M4, zinc plated steel

Terminal Body: Nickel plated brass

Body Material: Porcelain

Agency Approval: UL (File # E69841)

Stock Number: EHD-108-115

MFR Part Number: 4011-B

Maximum Voltage: 500 VAC,

Maximum Current: 44 Amp @ 104°F ambient

Maximum Temperature: 240°C/464°F

Wire Gauge: 18 to 8 ga.

Terminal Screw: M4, zinc-plated steel

Body Material: Steatite

Agency Approvals: None

Part Number: EHD-108-106

Maximum Voltage: 500 VAC,

Maximum Current: 44 Amp @ 104°F ambient

Maximum Temperature: 240°C/464°F

Wire Gauge: 18 to 8 ga.

Terminal Screw: M4, zinc-plated steel

Body Material: Steatite

Agency Approvals: None

Part Number: EHD-108-107

Maximum Voltage: 500 VAC,

Maximum Current: 44 Amp @ 104°F ambient

Maximum Temperature: 240°C/464°F

Wire Gauge: 18 to 8 ga.

Terminal Screw: M4, zinc-plated steel

Body Material: Steatite

Agency Approvals: None

Part Number: EHD-108-108

Maximum Voltage: 500 VAC,

Maximum Current: 44 Amp @ 104°F ambient

Maximum Temperature: 240°C/464°F

Wire Gauge: 18 to 8 ga.

Terminal Screw: M4, zinc-plated steel

Body Material: Steatite

Agency Approvals: None

Part Number: EHD-108-109

Maximum Voltage: 500 VAC,

Maximum Current: 44 Amp @ 104°F ambient

Maximum Temperature: 240°C/464°F

Wire Gauge: 18 to 8 ga.

Terminal Screw: M4, zinc-plated steel

Body Material: Steatite

Agency Approvals: None

Part Number: EHD-108-105

If your filter selections do not return your desired results from our standard configurations, please continue to select your Specifications. When you are finished, save your selections in the Wish List (using the button at the right of this page) and follow the steps to submit them to Tempco.

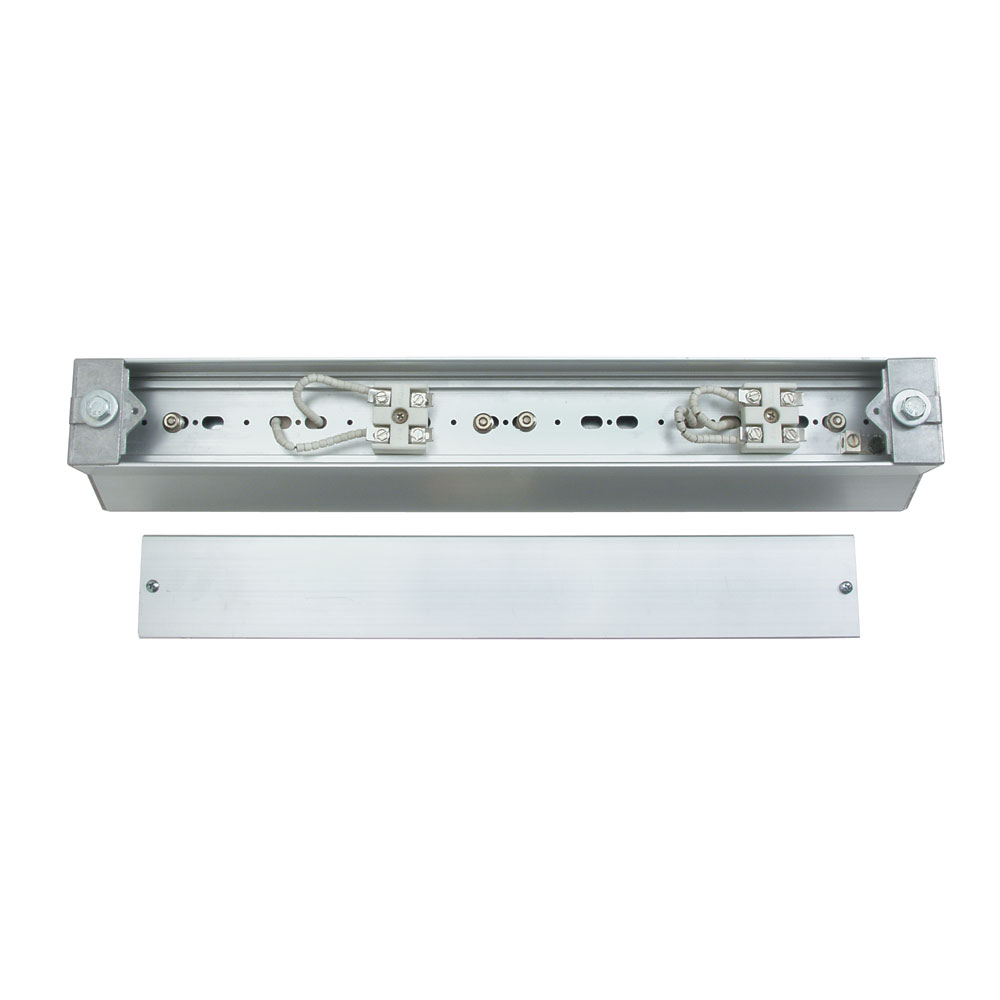

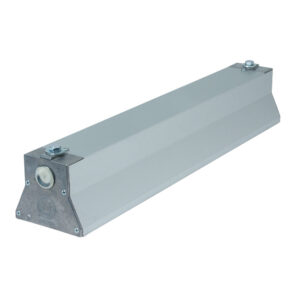

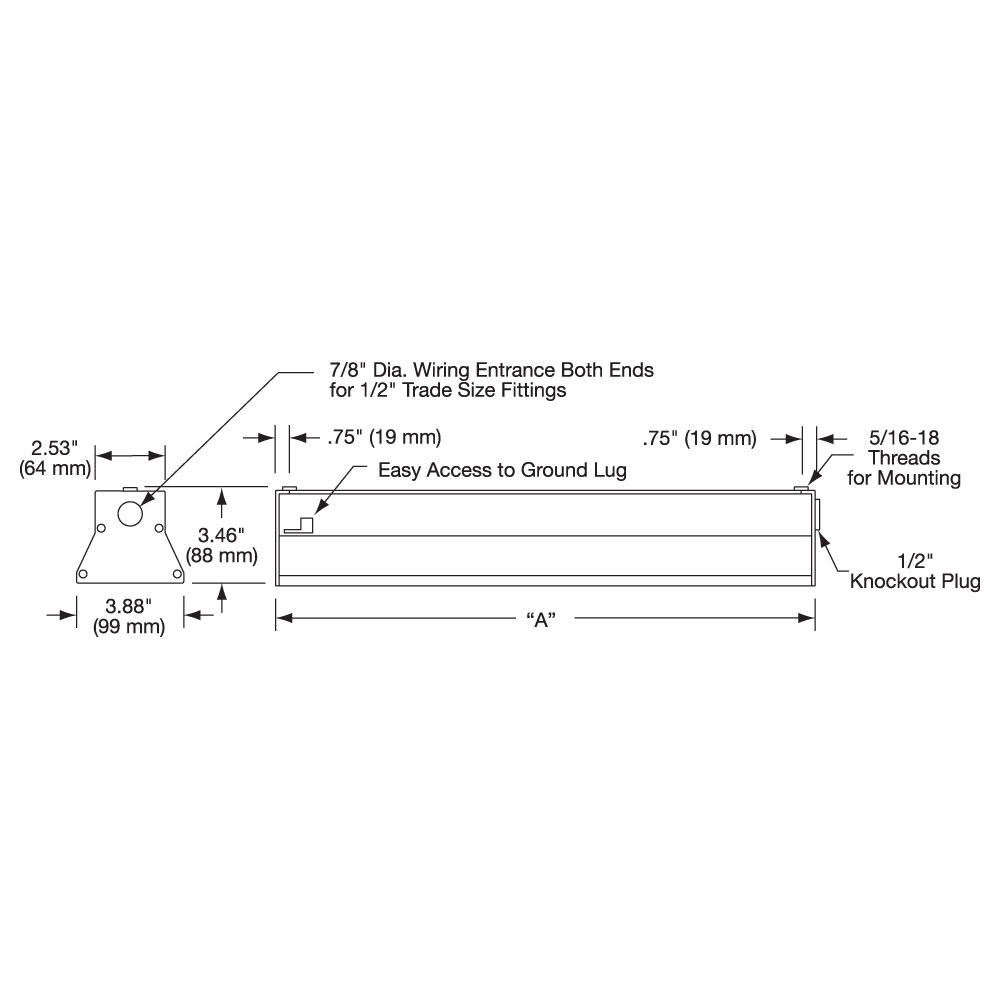

Standard CRK Linear Housings CRK housings include the following components: housing body, end plates, 5/16-18 mounting bolts, cover and ground lug.

Specify Type K thermocouple as needed.

Specify Type J thermocouple as needed.

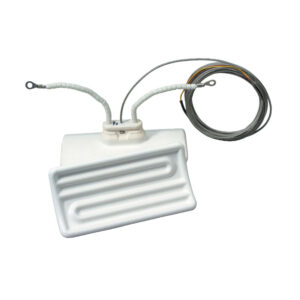

For those applications where emf generated noise is a problem for the instrument, Tempco offers a low noise thermocouple solution. The low noise thermocouple option is designed to minimize the induced AC noise by using stainless steel overbraid on the high temperature fiberglass color- coded 24 GA solid leads as a ground shield and a ceramic insulator at the thermocouple junction.

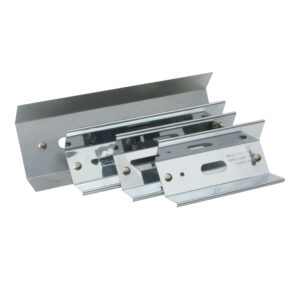

Designed to withstand bending and heat distortion. Made from highly polished chrome steel or optional aluminized steel for extreme temperatures and harsh environments. Will withstand high operating temperatures. Available in three standard sizes; includes standoffs and hardware. Easy installation into CRA linear structural housing assemblies (except CRK00032).

Stock High Temperature Stranded Lead Wire The following insulated lead wires are available for internal bussing and the line input wiring of CRA Linear Housing Assemblies and AR_ Radiant Panels.

The following insulated thermocouple wires are available for internal bussing and wiring of CRA Linear Housing Assemblies and AR_ Radiant Panels to external control systems. These duplex thermocouple wires have color coded fiberglass insulation over each lead within an overall fiberglass insulation jacket.

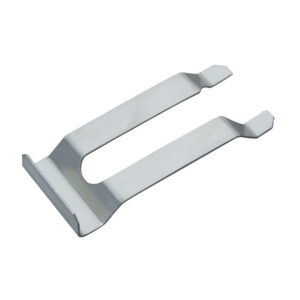

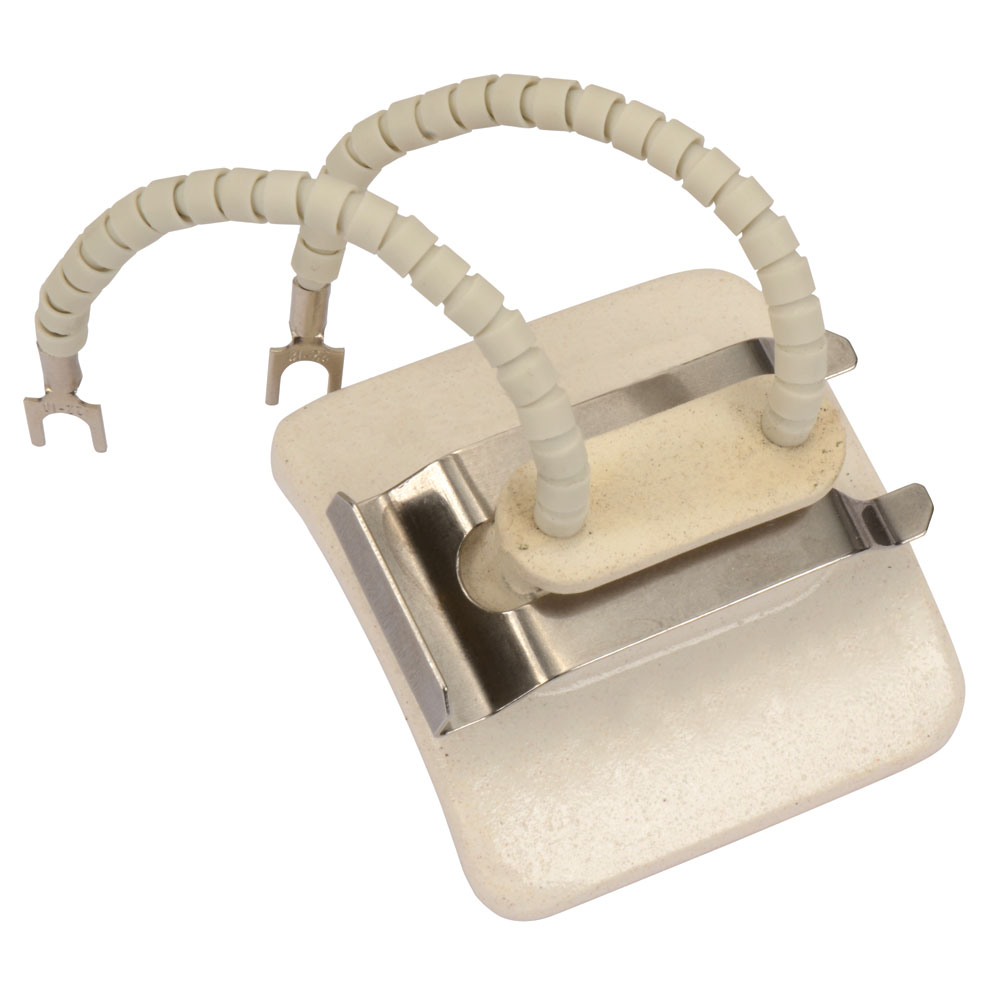

Part Number: SPR-103-102 Designed for heater mounting with 22 ga (.028″) to 20 ga (.037″) sheet metal. Thinner or thicker materials require the Two-Piece Mounting Clip.

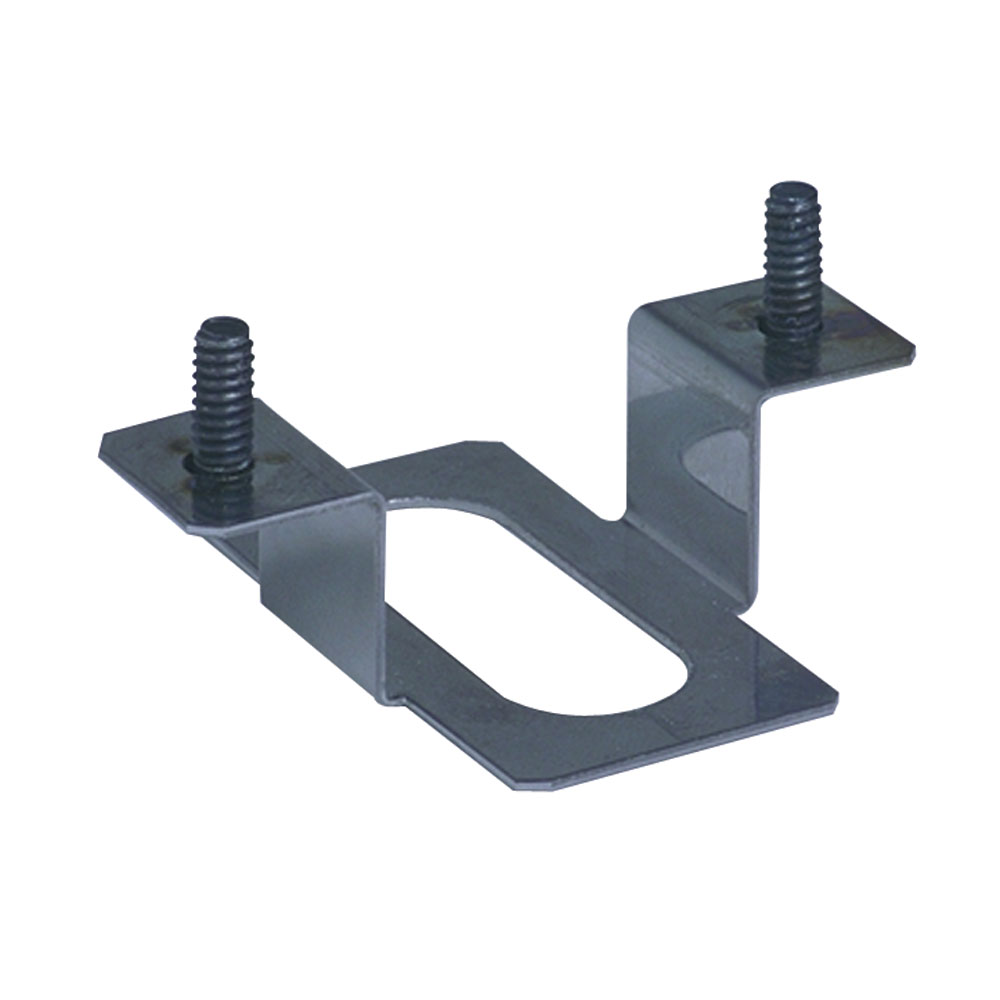

Part Number: CRK00008 The two-piece wave spring clip and holding clip assembly is used for mounting heaters in materials thicker than 20 ga (.037″) or thinner than 22 ga (.028″)

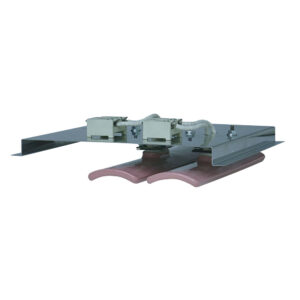

Part Number: CRK00018 A convenient method for mounting individual E-Mitters to a flat surface or panel for spot heating applications

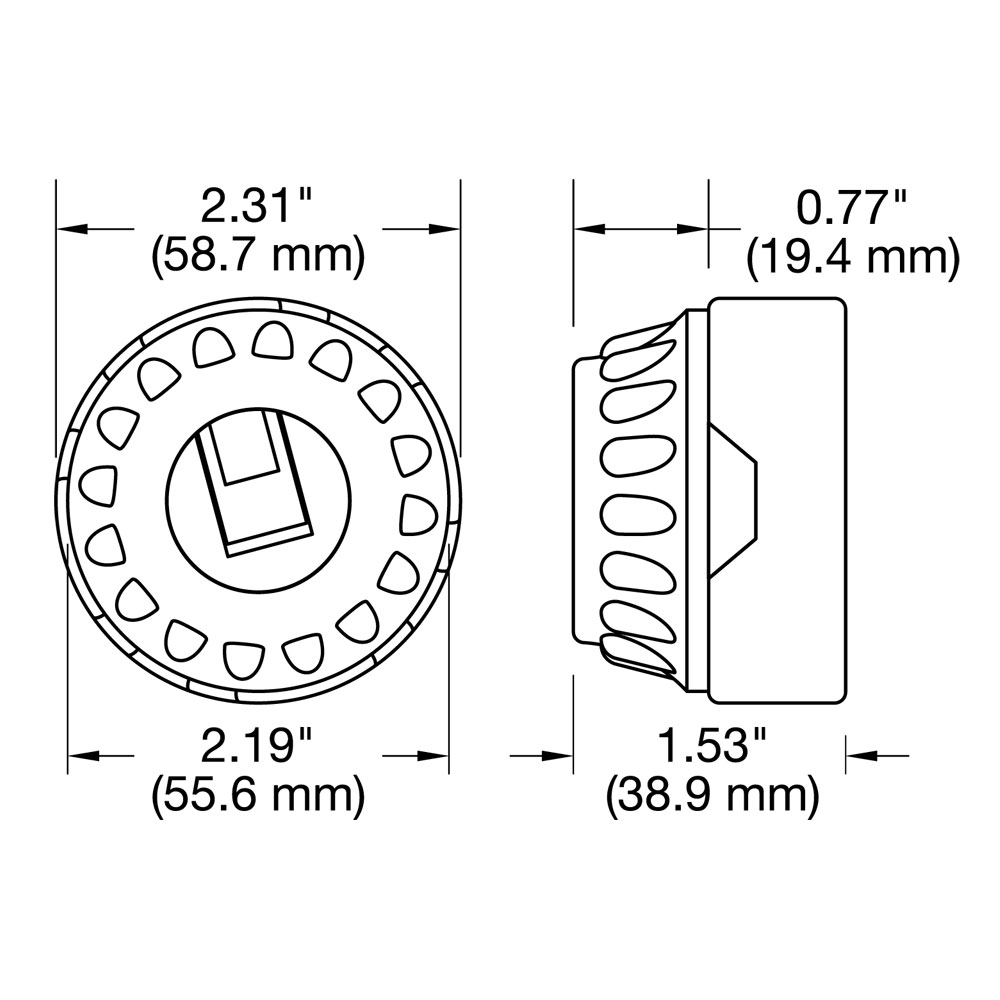

Part Number: CRK00016 Ceramic receptacle for use with screw-in bulb E-Mitters
