Heating Tape

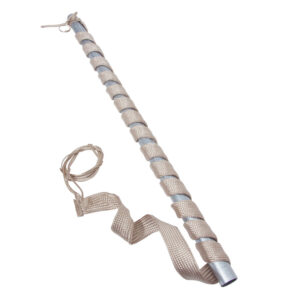

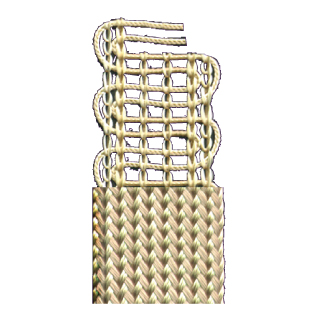

Design Features: 1400°F (760°C) temperature rating 2 ft. (610 mm) long high temperature lead wires on one end Highly flexible & rugged, knitted design High, medium and low watt density designs Constant wattage (min. ohm change cold to hot)

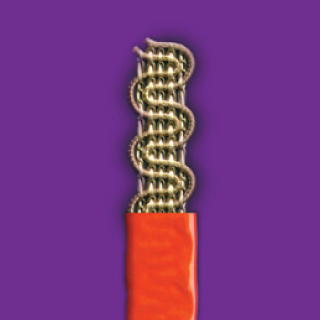

Design Features: 400°F (204°C) temperature rating, non-energized exposure to 500°F (260°C) 2 ft. (610 mm), 16 gauge, 600 VAC silicone rubber insulated leads Vulcanized fiber reinforced silicone rubber end cap Standard low watt density of 4.3 w/inch2 All standard 120 Volt units are provided with plug Multi strand wire element for maximum flexibility Highly flexible and durable design

Design Features: Maximum exposure temperature: 450°F (232°C) Rapid heat-up and thermal response Power density: 6.0 watts/inch² 6 foot (2 m) long power cord with 120VAC: standard 2-prong NEMA 1-15 plug 240VAC: bare wire construction Suitable for electrically conductive surfaces

Standard lead wire length is 2 ft. (61 cm). NOTE: Optional lengths may be ordered to 8 ft. For special length, width, watts or volts—contact Tempco.

A 120V plug can be ordered on indicated heaters only as a custom assembly. Since the leads of the Duo-Tape are on one end, the plug is a single molded unit. NOTE: When a plug is requested, lead wire length may be 2 ft. or shorter. Optional lengths may be ordered to 8 ft. For special length, width, watts or volts—contact Tempco.
