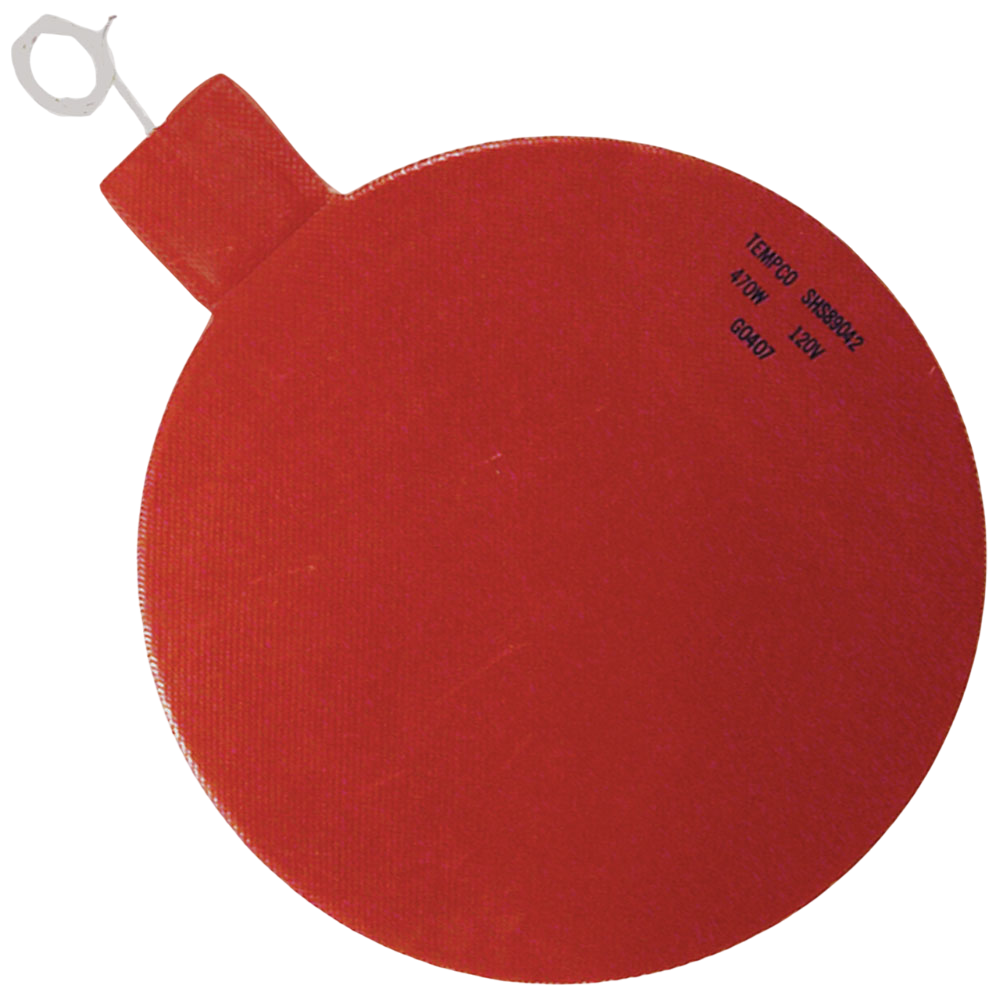

Composite Curing Heater Blankets

Tempco’s composite bonding and curing heater blankets are designed with:

• extra strong strain relief
• even heat distribution to produce the best possible cure or bond

Temperature uniformity is optimized for even heating through computer designed resistance elements. Circuit spacing is maintained at 1/4″ for larger heater blankets or less on smaller heaters. This technique guarantees a ±10°F (±5.5°C) temperature uniformity across the heater blanket. The lead wires exit the heater through an unheated 2″ × 2″ lead exit tab. This allows the overall heater surface to be heated while maintaining a separate unheated section for the transition from resistance element to the leads and a solid strain relief.
