Adhesive Backed Heating Tape

Operating Temperature Range: −100°C to 250°C, −148°F to 482°F

Outgassing…TML/VCM: 1.047%/.322%

Adhesion to Etched Aluminum (oz/inch width): 28 @ +125°C, 450 @−100°C

Overall Thickness Applied: .025″ (.63 mm)

Dielectric Strength: 600 Vdc

Operating Temperature Range: −40°C to 150°C, −40°F to 302°F

Outgassing…TML/VCM: 1.0%/.10%

Adhesion to Etched Aluminum (oz/inch width): 15 @ +125°C, 50 @−100°C

Overall Thickness Applied: .028″ (.71 mm)

Dielectric Strength: 600 Vdc

1/2″ (12.7 mm) wide; has the highest watt density and the most variety of resistances. It can have leads at one end in the case of a series connection or a series/parallel connection, or leads at either end in a parallel connection. The tightest wrap this tape can achieve is on a 1/4″ (6.3 mm) O.D. surface. A smaller tube should be wrapped with 1/4″ (6.3 mm) or 1/6″ (4.2 mm) tape.

1/4″ (6.3 mm) wide; has leads on one end in the series connection, and leads at both ends for parallel connections. This tape will wrap down to 1/8″ (3.17 mm) O.D.

1/6″ (4.2 mm) wide; can wrap down to .060″ (1.52 mm) O.D. A lead will be present at both ends.

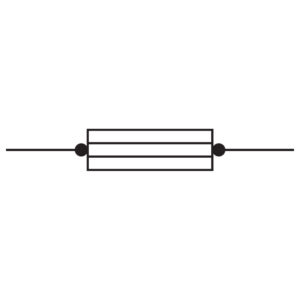

Ohms per foot, with all conductors in a Parallel Connection.

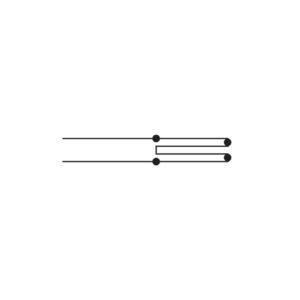

Ohms per foot, with all conductors in a Series Connection.

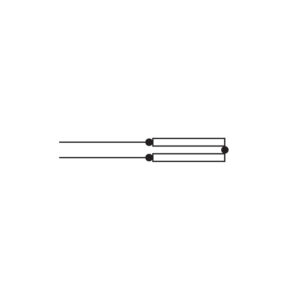

Ohms per foot, with all conductors in a Parallel – Series Pair Connection.

The “solderless crimps” are used to complete the non-lead end of the heater.

The Heat Transfer Tape is used to provide additional adhesion, placed over the heating tape.
