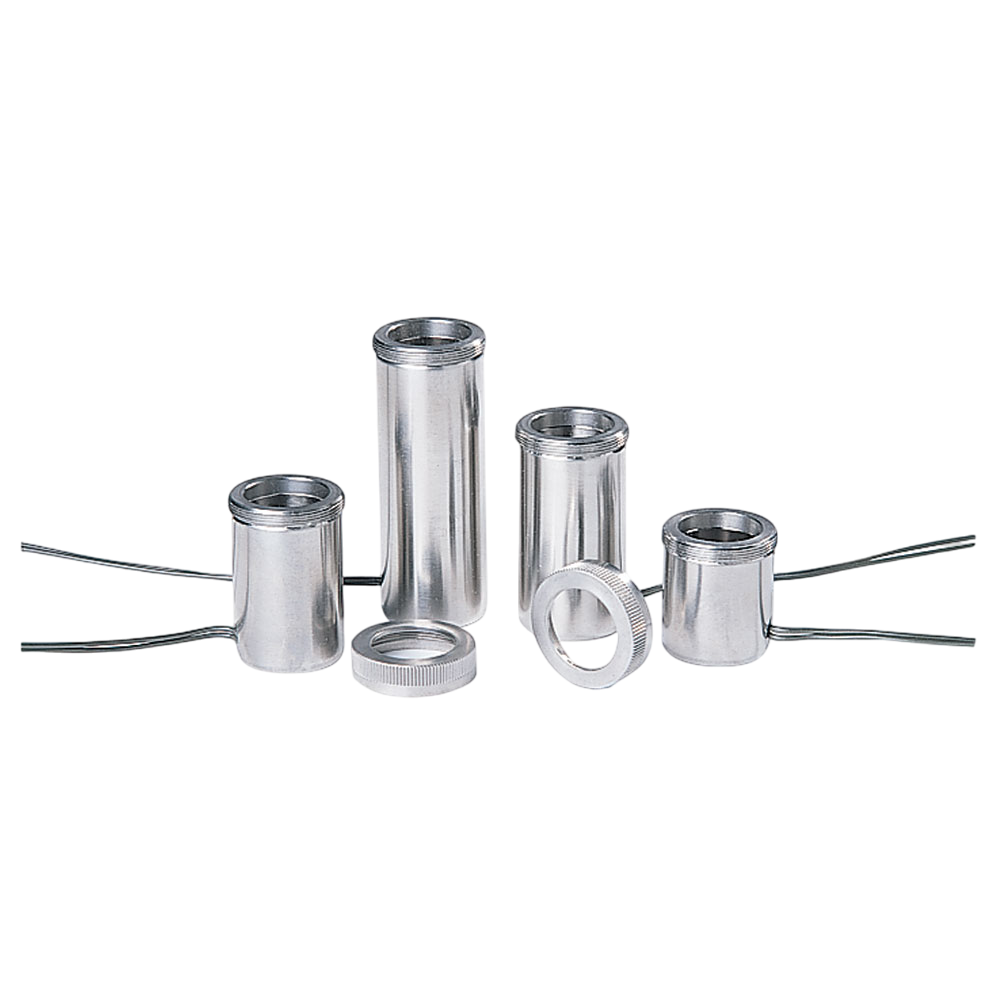

Gamma Series Dual Sleeve Mini-Coil Heaters
Gamma Series mini-coil heaters for hot runner tooling are constructed with the heating element tightly sandwiched between a nickel plated copper inner sleeve and a stainless steel outer sleeve.
- ID Tolerance: ± .0005″
- Wall Thickness: 0.130″
- Lead Wires: 72″ long Teflon® insulated
- Cold leads: 5″ and 7″ standard
- Resistance Tolerance: ± 2%
- Watt Density: Over 100 w/sq.in. possible
