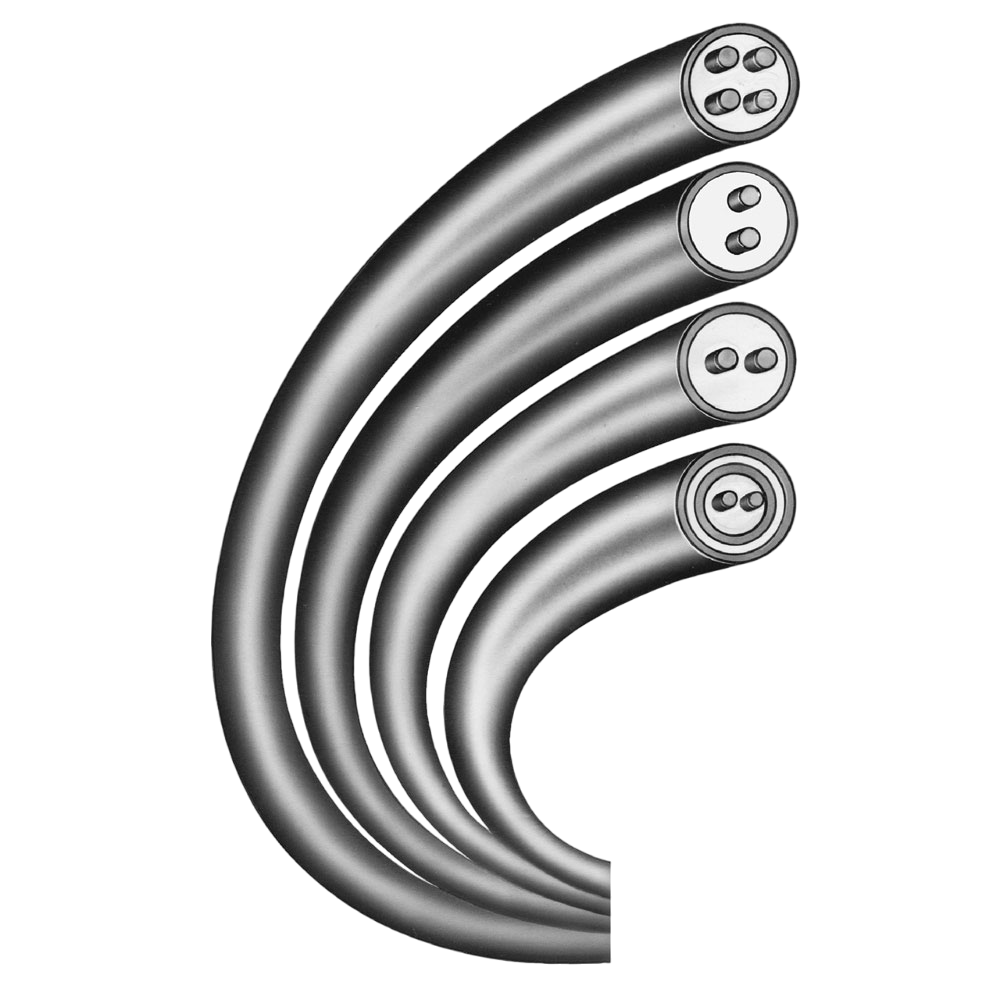

Bulk Round Heater Cable

Typical Applications:

Blown Film Die Heaters
Heat Tracing
De-icing Car Wash Door Rails
De-icing Outside Stairways

304 SS
Inconel® 600

Minimum Bending Radius Minimum bending radius for all mineral insulated cable heaters is two times the sheath diameter. Power Calculation: The required wattage can be calculated using the following formula: Scroll table to view all Scroll table to view all Scroll table to view all

Save for Quote

Refine Results

(1 filter)

Electrical Terminations

Type M: Plain Leads

Standard

M1 – High temperature cement potting with TGGT (Teflon® tape, fiberglass, Teflon® treated fiberglass overbraid) insulated lead wire for 482°F (250°C) and silicone sealed is standard.

Optional

M2 – High temperature epoxy potting rated 450°F (232°C) with PTFE Teflon^® lead wire for a better moisture seal.

M3 – High temperature cement potting with MGT (mica tape, Teflon® treated fiberglass overbraid) insulated lead wire for 842°F (450°C) and silicone sealed.
