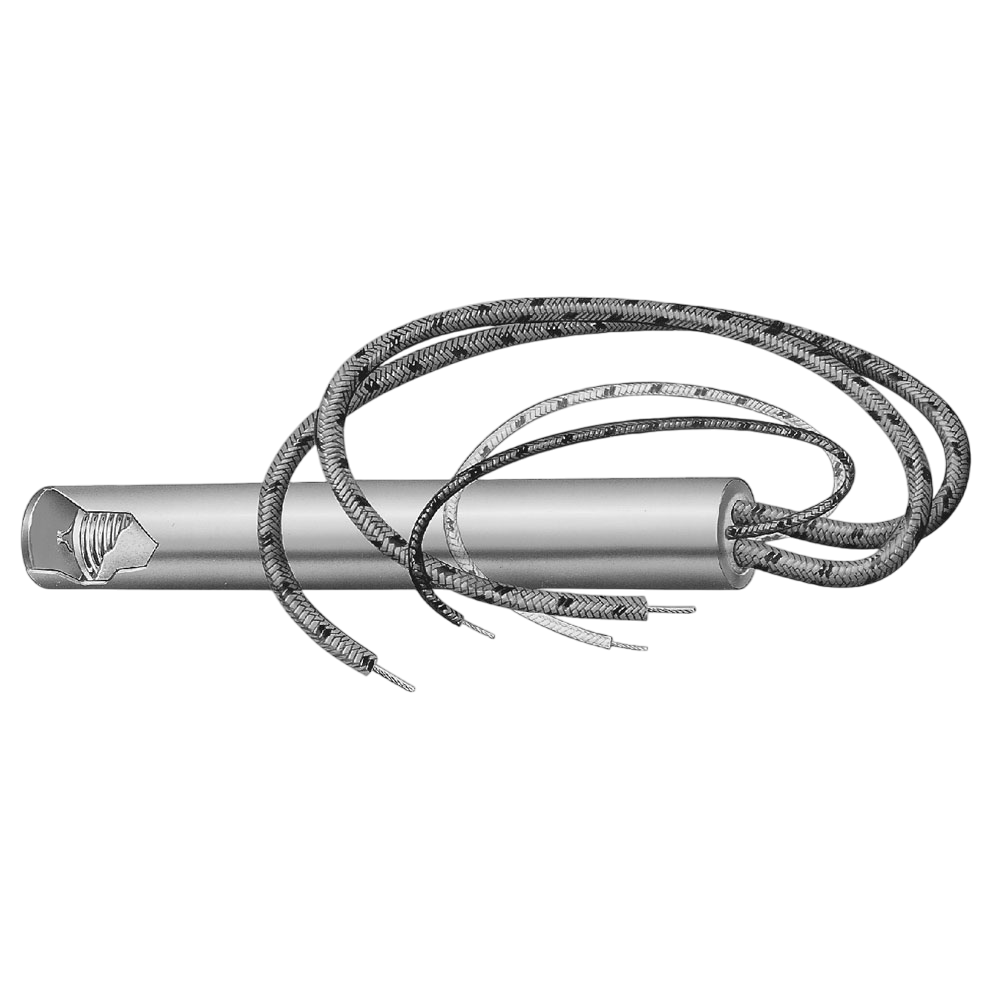

These heaters are configured for specific tasks in the plastic injection molding environment with extra long leads, Teflon® or fiberglass insulation, optional thermocouples and grounded sensor options at the end or middle of the heater.
Design Features include:
Hi-Density Swaged Construction
Copper Flat End Disc
Type J T/C
36″ High Temperature Leads for both heater and T/C
Minimum cold sections / computer designed distributed wattage
OEM Replacements available from Stock for Runnerless Molding Systems
No options available for this section based on your selections
Type F: Internally Connected Flexible Leads
Standard Termination for Low-Density Cartridge Heaters. The fiberglass lead wires are internally connected to the terminal pins. This lead termination provides flexibility, permitting the lead wires to be sharply bent as they exit the heater.
Standard Termination for Low-Density Cartridge Heaters. The fiberglass lead wires are internally connected to the terminal pins. This lead termination provides flexibility, permitting the lead wires to be sharply bent as they exit the heater.
Minimum 3/8″ up to 1″ unheated section at the lead end is required.
Standard lead wire temperature rating for HDC & HDM: 842°F (450°C). Standard lead wire temperature rating for LDC: 482°F (250°C).
Standard 10″ (254 mm) leads. Specify longer leads.
For HDC & HDM heaters, leads longer than 60″ require a splice.
Sensor Options
No options available for this section based on your selections
Type TJ1 and TK1: Grounded at Disc End
The thermocouple junction is grounded to the sheath at the disc end and packed with MgO. The concave end disc is filled with silver solder and ground flat. When inserted into a flat end blind hole, it will provide fast responsive temperature readings. Widely used in Hot Runner mold probes.
The thermocouple junction is grounded to the sheath at the disc end and packed with MgO. The concave end disc is filled with silver solder and ground flat. When inserted into a flat end blind hole, it will provide fast responsive temperature readings. Widely used in Hot Runner mold probes.
TJ1 Type J thermocouple
TK1 Type K thermocouple
Minimum sheath length: 3″ for 1/4″, 3/8″ and 1/2″ diameter. 4″ for 5/8″ and 3/4″ diameter.
10″ leads are standard for both heater and
thermocouple. Leads are internally connected. Specify longer leads.
ANSI Code
Conductor Characteristics
Temperature Ranged
Postivie
Negative
°F
°C
J
Iron (Magnetic)
Constantan (Non-Magnetic)
0 to 1400
-17 to 760
K
Chrome (Non-Magnetic)_
Alumel (Magnetic)
0 to 2300
-17 to 1260
For other thermocouple types, constult Tempco.
Scroll for more
Minimum sheath length: 3″ for 1/4″, 3/8″ and1/2″ diameter. 4″ for 5/8″ and 3/4″ diameter.
Power Variations
No options available for this section based on your selections
Type DW: Distributed Wattage
Cartridge heaters can be designed to vary the wattage along the length of the heater. Specify number of zones and the required watts and length per zone starting from the disk end. Leads can be connected externally or internally. Picture shows a heater with Type N externally connected leads. Heaters with other terminations may require a longer cold section at the lead end.
Cartridge heaters can be designed to vary the wattage along the length of the heater. Specify number of zones and the required watts and length per zone starting from the disk end. Leads can be connected externally or internally. Picture shows a heater with Type N externally connected leads. Heaters with other terminations may require a longer cold section at the lead end.
